CMX2+ Precision Common Mode AC Line Filter With DC Offset Eliminator and Surge Protection

Precio habitual
$149.00
Precio de venta
$149.00
Precio habitual
Agotado
Precio unitario
por

Earn 5000 Reward Points with this purchase

Earn Reward Points with Every Purchase

  • 100 pts = $5
  • Spend on future purchases and upgrades
  • $100 min for points redemption
  • Points expire after 6 months of inactivity
B3F9D04C-12D1-42F5-8EB7-69A5B402DDD6@1x
Protect your high-performance audio components from line noise by filtering out unwanted hum..
Heavy duty internal wiring and filter components ensure minimal power loss.
All metal construction and removable standard IEC power cable (included).
Special circuitry eliminates power robbing DC offset from your AC power.
  • Free Shipping over $49

    We ship free within the contiguous 48 states in the US, and in select countries in Europe. Additional shipping charges apply for excluded shipping locations. Shipping options and rates are available at checkout.
  • Direct to consumer, no retail markups

If you are ordering from Emotiva Europe, the product cost includes all taxes and free shipping. It is higher than our USA product price which does not include any taxes. USA customers pay taxes as a separate line item fee added at checkout.

  • Features

  • Overview

  • Specifications

Ideal accessory for high-performance electronics

Power Direct Connect™ mounting system, which connects the outlets directly to the circuit board.Helps ensure the lowest possible noise floor by preventing high-frequency line noise from reaching your audio gear.

High-quality common mode and differential mode L-C noise filtering.

115 joules of fast acting surge protection.

Precision DC offset eliminator.

Premium high-quality components and a heavy-duty double sided FR4 circuit board with high current paths on both sides.

Two commercial grade AC outlets.

Detachable IEC high current, 14 gauge, 2 meter power cord included.

High reliability resettable magnetic circuit breaker.

Constructed from machined alumimum.

Can be mounted vertically or horizontally.

The CMX2+ is a heavy-duty AC power strip that provides clean power, free of common mode and high frequency line noise to two commercial grade outlets. This allows the audio components connected to the CMX2+ to deliver their best performance under all operating conditions. The CMX2+ also includes a fast-acting resettable magnetic circuit breaker and 115 joules of surge suppression to protect your valuable audio gear from potentially damaging line surges and transients.

Constructed from premium components, the CMX2+ utilizes our exclusive Power Direct Connect™ mounting system, which connects its three pairs of commercial grade outlets directly to the high current circuit board by the shortest possible path, eliminating power robbing resistive losses and other problems caused by less reliable and robust wiring techniques. Inside the sleek machined aluminum case of the CMX2+, both common-mode and differential-mode L/C filtering is employed to reduce or eliminate all types of high-frequency line noise. Surge suppression is provided by a 115 joule metal oxide varistor with a peak surge current rating of 4500 Amps.

In addition to the sharing the main features of the CMX6+, the CMX2+ offers a solution to a less well-known problem – DC offset and AC waveform distortion on the AC power line itself. DC offset is usually the result of unbalanced loads or of flaws in the power distribution system itself. While only present on some power lines, DC offset can be extremely difficult to detect and, when it is present, can cause a variety of problems. DC offset causes extra current to flow through the power transformers that power your audio gear, which can make them run hotter, and produce more mechanical hum, and in extreme cases can even potentially cause permanent damage. If DC offset is present on your AC power line, the special DC Offset Elimination circuit in the CMX2+ will completely block it from reaching the gear that is connected to it. AC line distortion is the result of dimmers, switching power supplies, motors, and other AC loads that can cause AC line asymmetry and distortion. The CMX2+ helps restore AC waveform integrity and balance.

If you have a power transformer that is buzzing or humming, you need the CMX2+!

  • AC power source:
    120 VAC +/- 20% @ 60 Hz; 15 Amps.

  • Number of AC outlets: 2.

  • Load (total for both outlets):
    15 amps continuous rating.
    Magnetic circuit breaker allows for short-term inrush current of up to 250% of rated load.

  • Power Cable:
    Standard IEC detachable power cord; 7 feet long; 14 AWG x 3.

  • Size:
    3” wide x 1-3/4” high x 15” long (unboxed).
    7-1/2″ wide x 3-3/4″ high x 16-1/4″ long (boxed).

  • Weight:
    2.7 lbs (unboxed).
    4 lbs (boxed).

Product Reviews

You May Also Like

Accesorio de orejas de rack
Precio habitual
de $39.00
Precio de venta
de $39.00
Precio unitario
por
Sistema de subwoofer inalámbrico de audio digital de 24 bits de cobre virtual VSUB-1
Precio habitual
$149.00
Precio de venta
$149.00
Precio unitario
por
Sold Out

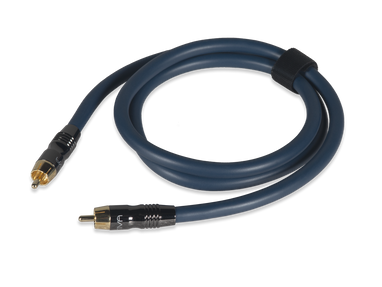

Cable RCA analógico XRCA
