Photo of the front of the XPA Gen3 HC1 Monoblock Amplifier
XPA HC-1 renovado de fábrica
Sold Out

XPA HC-1 renovado de fábrica

  • Photo of the front of the XPA Gen3 HC1 Monoblock Amplifier

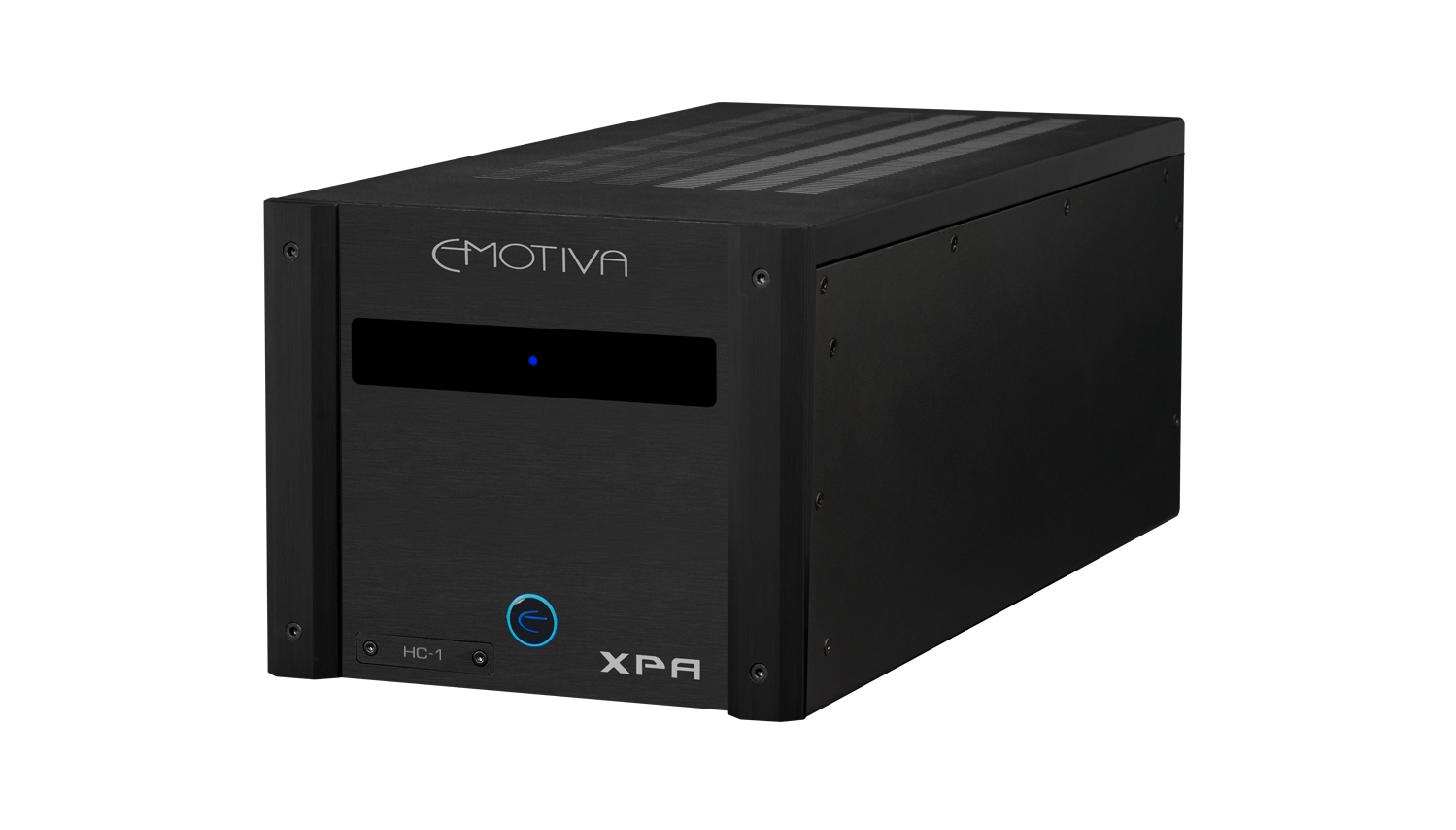

  • Isometric photo of the front of the XPA Gen3 HC1 Monoblock Amplifier
  • Isometric photo of the rear of the XPA Gen3 HC1 Monoblock Amplifier
  • Photo of the rear of the XPA Gen3 HC1 Monoblock Amplifier
  • Photo of XPA Gen3's Logo on the bottom right corner of the product

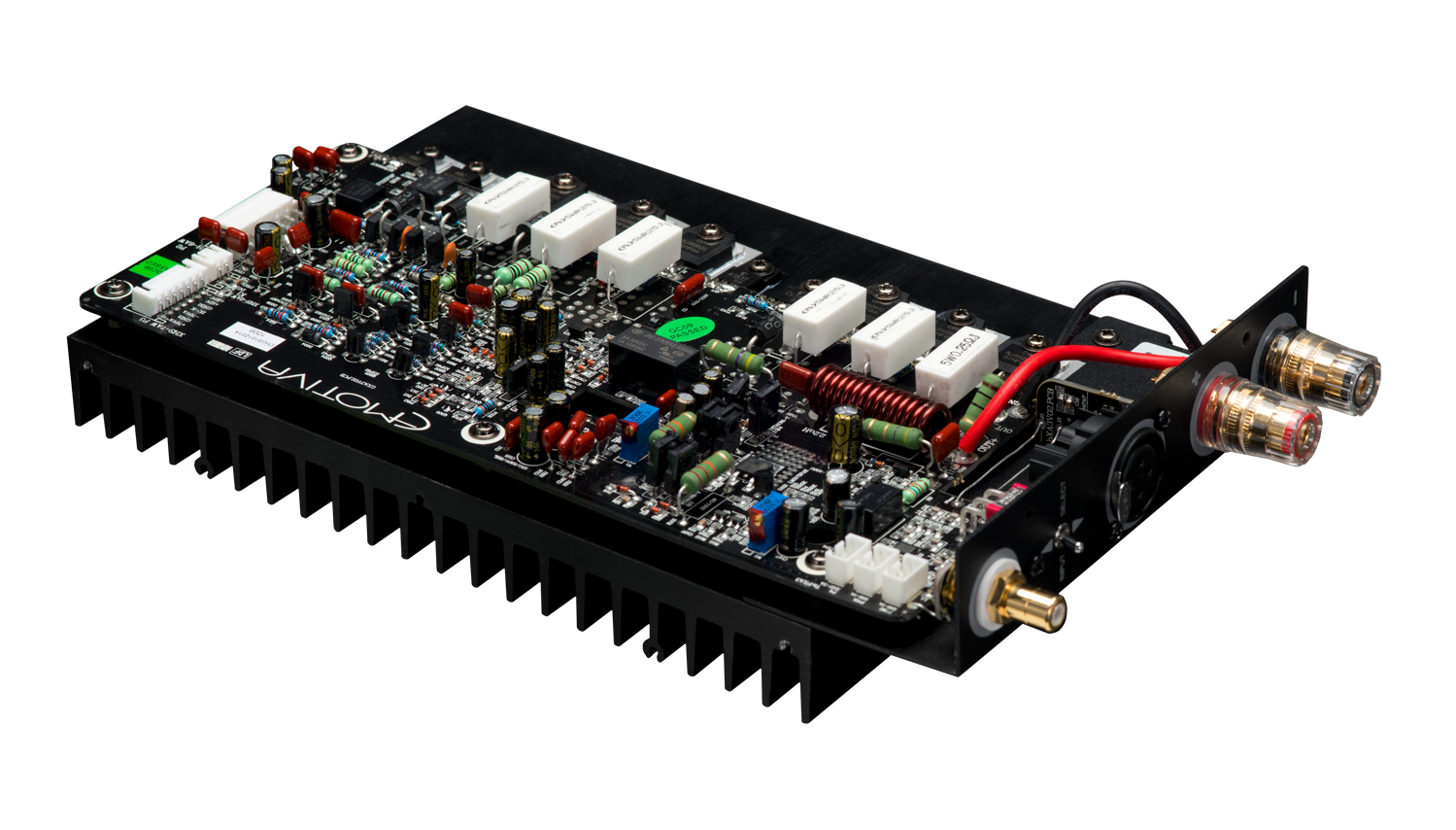

  • Photo of the XPA GEN3 Module's PCB and input and output terminals
  • Photo of the XPA Gen3 Module's PCB and input and output circuitry
  • Isometric Photo of the XPA Gen3 Power Supply PCB and power circuitry
  • Close up photo of the XPA Power Button glowing blue
$849.15
$849.15
Agotado
Notify Me When Available

Earn 5000 Reward Points with this purchase

Earn Reward Points with Every Purchase

  • 100 pts = $5
  • Spend on future purchases and upgrades
  • $100 min for points redemption
  • Points expire after 6 months of inactivity
Learn more
B3F9D04C-12D1-42F5-8EB7-69A5B402DDD6@1x
Audiophile grade Class A/B output stages and a massive silent switch mode power supply
Monoblock amplifier for the ultimate in performance and convenience
Buy one to power your center channel or position one next to each speaker
5 Year Warranty

  • Free Shipping over $99

    We ship free within the contiguous 48 states in the US, and in select countries in Europe. Additional shipping charges apply for excluded shipping locations. Shipping options and rates are available at checkout.

  • Direct to consumer, no retail markups

If you are ordering from Emotiva Europe, the product cost includes all taxes and free shipping. It is higher than our USA product price which does not include any taxes. USA customers pay taxes as a separate line item fee added at checkout.

Need Help?

1-615-790-6754
FAQs

Sound Quality First

Monoblock design for perfect channel isolation and exceptional sound quality.

Designed first and foremost to sound superb in all types of audio systems with all types of music.

Low noise, low distortion, wideband amplifier design with traditional Class A/B output stage ensures smooth, detailed sound, without a trace of strain or harshness.

Totally stable with real world speakers in real systems; not just on a test bench.

Modern Efficient Circuit Design

Optimized Soft-Switch Class H™ power supply topology delivers improved efficiency without compromising audio performance.

Switched Mode Power Supply (SMPS) offers all of the performance of a traditional linear power supply, with improved efficiency and reliability, and reduced overall weight.

Quality Construction

Top quality parts and construction throughout for years of reliable trouble-free service.

Heavy steel chassis with milled aluminum faceplate offers strength and rugged good looks.

Solid machined gold-plated RCA input connectors provide a reliable connection with a wide variety of audio interconnects.

Designed, assembled, and tested in the U.S.A. at our plant here in Franklin, Tennessee.

Flexible Signal Connections and Power Options

Audiophile quality gold plated five-way speaker binding posts allow you to use a wide range of speaker cables with bare wires, lugs, or banana plugs.

Choice of balanced or unbalanced inputs, controlled by a reliable metal toggle switch.

Remote trigger input and output allow the XPA HC-1 to control and be controlled by other trigger-enabled equipment.

World compliant AC line voltage operation enables the XPA HC-1 to operate on any line voltage between 100 VAC and 250 VAC 50/60Hz.

Standard IEC power inlet fits all standard IEC power cables and most custom audiophile power cables.

Protection

Audiophile-grade fault protection is entirely transparent under normal listening conditions, yet protects the amp and your other equipment from virtually all common faults.

The XPA HC-1 is protected from AC line faults by a rugged resettable rear panel push-button circuit breaker.

Full five-year warranty ensures that you’ll be able to enjoy your XPA HC-1 monoblocks for years to come.

The power amplifier performs the simple but critical job of boosting the output signals from each channel of your stereo preamp or surround sound processor to the level necessary to drive your loudspeakers. While this may seem trivial, a really good power amp is essential to having a great audio system, because any flaws in the performance of your power amp are going to limit the performance of your entire system. Every amplifier in the new Third Generation XPA series was carefully designed to deliver superb technical performance, unsurpassed sound quality, and an exceptionally accurate and dynamic rendition of all types of music, thus ensuring that your entire system will sound its absolute best. Each individual XPA amplifier is modular, and can be customized to provide exactly the power and number of channels you need today, and expanded later if your needs change; and multiple matching chassis enables you to add even more channels, or more power, for a nearly endless variety of options.

Circuit Topology

The XPA HC-1 is a monoblock audio power amplifier, with a fully discrete, dual
differential, high current, short signal path Class A/B amplifier section, Optimized Class H™ power supply topology, and microprocessor-controlled fault protection.

The XPA HC-1 is powered by a high efficiency, audiophile grade, Switch Mode Power Supply (SMPS).

Audio Specifications

The XPA HC-1 features a single High-Powered Single Channel Amplifier Module.

Power Output:


•300 watts RMS; 20 Hz – 20 kHz; THD <0.1%; 8 Ohms


•600 watts RMS; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms

Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB)

Broad Band Frequency Response: 5 Hz to 80 kHz +0/-2 dB

THD + noise: < 0.015%; at 100 watts RMS; 1 kHz; 8 Ohms

Signal to Noise Ratio (8 Ohm load): > 120 dB; ref FTC rated power; unbalanced input (A-weighted) > 95 dB; ref 1 watt; unbalanced input (A-weighted)

Minimum Recommended Load Impedance: 4 Ohms

Damping Factor (8 Ohm load): > 500

Input Sensitivity (for rated power; 8 Ohm load): 1.71 V

Gain: 29 dB

Input Impedance:
33k Ohms (balanced)

23.5k Ohms (unbalanced)

Input And Output Connections

Input Connections: Unbalanced (RCA); balanced (XLR); independently selectable

Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts

Trigger

Power Requirements


Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected)

Front Panel Controls and Indicators

Standby: push button (halo ring changes color to indicate Standby or On)

Status LED: one; blue

Rear Panel Controls


AC Power switch: rocker switch (switches AC main power)

Status LED switch: disables front panel Status LED and dims Standby button halo

Input selector switch

Circuit Breaker: press button to reset circuit breaker.

Protection


The XPA HC-1 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.

Mechanical

Dimensions:
8-3/8” wide x 7-5/8” high x 19” deep (unboxed; including feet and connectors)

24-3/4” wide x 12” high x 14-1/2” deep (boxed)

Weight:

Boxed: 28 lbs

Unboxed: 21.5 lbs
