Amplificador monobloque de alta corriente XPA HC-1
Click Here For Holiday Shipping Information
Canadian customers | if item is unavailable, please contact us
The XPA HC-1 is a true monoblock power amplifier and features a sin...
The XPA HC-1 is a true monoblock power amplifier and features a single high-power XPAGen3 amplifier module, powered by its own dedicated massive switch mode power supply (SMPS). If you’ve been considering our other XPA Gen3 models, but you’ve really got your heart set on monoblocks, then the XPA HC-1 is the amplifier you need to get your hands on.
If you are ordering from Emotiva Europe, the product cost includes all taxes and free shipping. It is higher than our USA product price which does not include any taxes. USA customers pay taxes as a separate line item fee added at checkout.
Need Help?
Product Overview
Product Features
Sound Quality First
Monoblock design for perfect channel isolation and exceptional sound quality.
Designed first and foremost to sound superb in all types of audio systems with all types of music.
Low noise, low distortion, wideband amplifier design with traditional Class A/B output stage ensures smooth, detailed sound, without a trace of strain or harshness.
Totally stable with real world speakers in real systems; not just on a test bench.
Modern Efficient Circuit Design
Optimized Soft-Switch Class H™ power supply topology delivers improved efficiency without compromising audio performance.
Switched Mode Power Supply (SMPS) offers all of the performance of a traditional linear power supply, with improved efficiency and reliability, and reduced overall weight.
Quality Construction
Top quality parts and construction throughout for years of reliable trouble-free service.
Heavy steel chassis with milled aluminum faceplate offers strength and rugged good looks.
Solid machined gold-plated RCA input connectors provide a reliable connection with a wide variety of audio interconnects.
Designed, assembled, and tested in the U.S.A. at our plant here in Franklin, Tennessee.
Flexible Signal Connections and Power Options
Audiophile quality gold plated five-way speaker binding posts allow you to use a wide range of speaker cables with bare wires, lugs, or banana plugs.
Choice of balanced or unbalanced inputs, controlled by a reliable metal toggle switch.
Remote trigger input and output allow the XPA HC-1 to control and be controlled by other trigger-enabled equipment.
World compliant AC line voltage operation enables the XPA HC-1 to operate on any line voltage between 100 VAC and 250 VAC 50/60Hz.
Standard IEC power inlet fits all standard IEC power cables and most custom audiophile power cables.
Protection
Audiophile-grade fault protection is entirely transparent under normal listening conditions, yet protects the amp and your other equipment from virtually all common faults.
The XPA HC-1 is protected from AC line faults by a rugged resettable rear panel push-button circuit breaker.
Full five-year warranty ensures that you’ll be able to enjoy your XPA HC-1 monoblocks for years to come.
Specs & Downloads
The XPA HC-1 is a monoblock audio power amplifier, with a fully discrete, dual
differential, high current, short signal path Class A/B amplifier section, Optimized Class H™ power supply topology, and microprocessor-controlled fault protection.

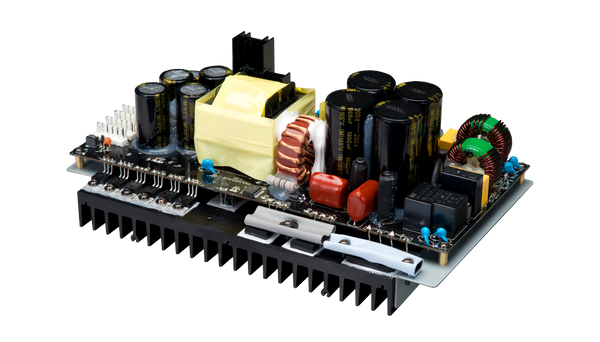

The XPA HC-1 is powered by a high efficiency, audiophile grade, Switch Mode Power Supply (SMPS).

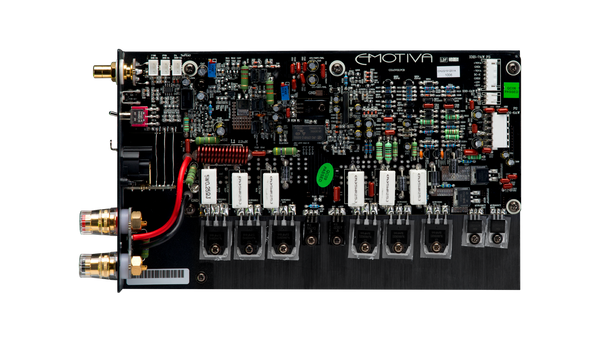

The XPA HC-1 features a single High-Powered Single Channel Amplifier Module.
Power Output:
•300 watts RMS; 20 Hz – 20 kHz; THD <0.1%; 8 Ohms
•600 watts RMS; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms
Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB)
Broad Band Frequency Response: 5 Hz to 80 kHz +0/-2 dB
THD + noise: < 0.015%; at 100 watts RMS; 1 kHz; 8 Ohms
Signal to Noise Ratio (8 Ohm load): > 120 dB; ref FTC rated power; unbalanced input (A-weighted) > 95 dB; ref 1 watt; unbalanced input (A-weighted)
Minimum Recommended Load Impedance: 4 Ohms
Damping Factor (8 Ohm load): > 500
Input Sensitivity (for rated power; 8 Ohm load): 1.71 V
Gain: 29 dB
Input Impedance:
33k Ohms (balanced)
23.5k Ohms (unbalanced)
Input Connections: Unbalanced (RCA); balanced (XLR); independently selectable
Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts
POWER REQUIREMENTS
Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected)

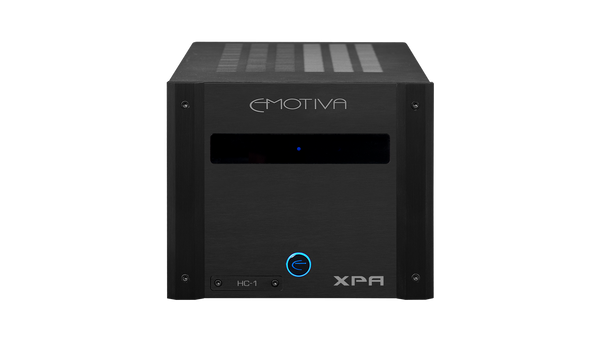

Front Panel Controls and Indicators
Standby: push button (halo ring changes color to indicate Standby or On)
Status LED: one; blue

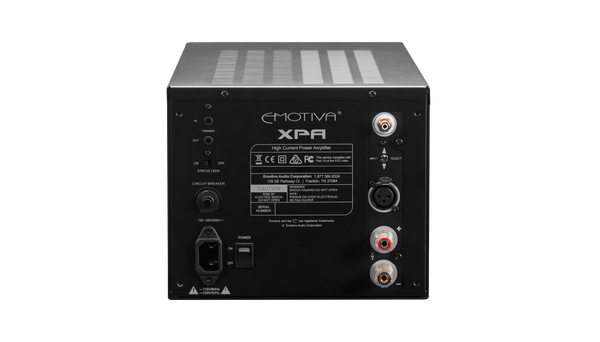

Rear Panel Controls
AC Power switch: rocker switch (switches AC main power)
Status LED switch: disables front panel Status LED and dims Standby button halo
Input selector switch
Circuit Breaker: Press button to reset circuit breaker.
Protection
The XPA HC-1 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.
Mechanical
Dimensions:
8-3/8” wide x 7-5/8” high x 19” deep (unboxed; including feet and connectors)
24-3/4” wide x 12” high x 14-1/2” deep (boxed)
Weight:
Boxed: 28 lbs
Unboxed: 21.5 lbs
