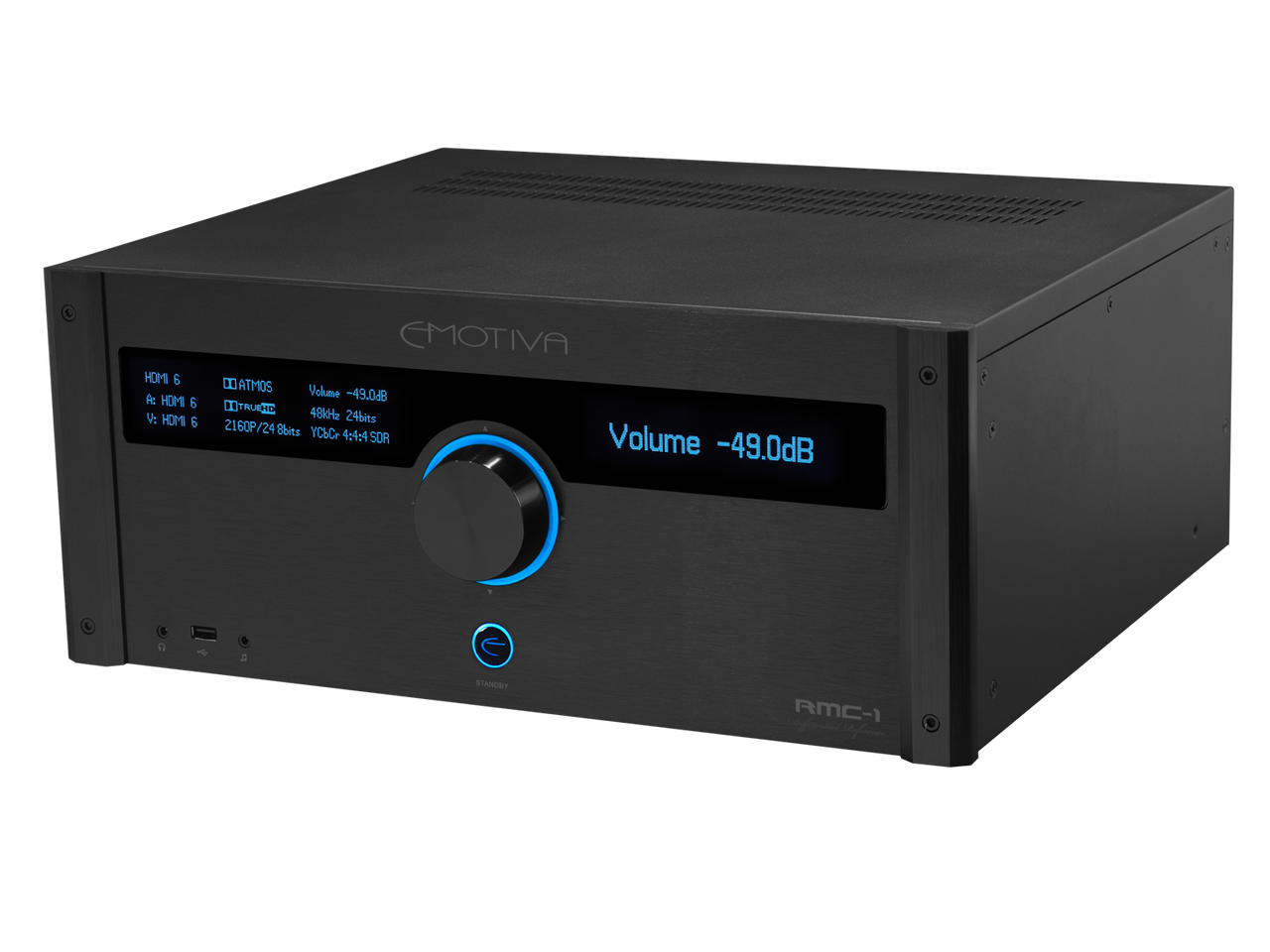

RMC-1 CR8 8K Certified Refurbished Cinema Processor
If you are ordering from Emotiva Europe, the product cost includes all taxes and free shipping. It is higher than our USA product price which does not include any taxes. USA customers pay taxes as a separate line item fee added at checkout.
Product Overview
Product Features
Specs & Downloads
Digital Decoding Modes
Dolby Atmos®
Dolby TrueHD
Dolby Digital Plus
Dolby Digital 5.1
DTS:X™
DTS:X Pro™
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 5.1
PCM-Multi 5.1
PCM-Multi 7.1
Digital Post-Processing Modes
Dolby Surround Upmixer (DSU)
Dolby Atmos Height Virtualization
DTS Neural:X upmixer
DTS Virtual:X
IMAX Enhanced (Coming Soon)
Audio Operating Modes
Reference Stereo (purist stereo mode)
Direct Mode (minimal processing; with bass management)
Stereo Mode
All Stereo Mode
Display
OLED (dual blue; high resolution 256 x 60 pixel graphical;
variable brightness)
OSD
Color OSD is displayed over live video, including 4k, 8k,and 3D sources
(variable transparency; multiple operating modes provide different levels of information)
Analog Inputs
1 pair (stereo) – Reference quality analog audio (balanced;
XLR)
3 pair (stereo) – Reference quality analog audio
(unbalanced; RCA)
Digital Inputs
8 – HDMI 2.1 with Fast Port Switching (FPS), Variable Refresh Rate (VRR), and Fixed Rate Link (FRL)
4 – Toslink optical S/PDIF digital audio
4 – Coax (RCA) electrical S/PDIF digital audio
1 – AES/EBU (XLR) digital audio
2 – USB Type A digital data (for firmware updates and future
enhancements)
1 – USB Type B digital audio (“USB DAC” input)
1 – Ethernet port (RJ-45)
1 – Wifi antenna
Other Inputs
Internal high-performance AM/FM tuner (antenna connections: FM - “F” connector; AM - push terminals)
Wired IR remote control input
Analog Outputs
Output board: AKM4490 Verita DACs
16 channels – Reference quality main analog audio (balanced
XLR)
1 pair (stereo) – analog line level Zone 2 output
(unbalanced)
1 – high-quality headphone output (1/8” stereo connector)
Digital Outputs
2 – HDMI 2.1
1 – Toslink optical S/PDIF digital audio
1 – Coax (RCA) electrical S/PDIF digital audio
4 – Independently programmable Trigger Outputs
Expansion Ports (for future expansion modules)
RMC-1+ (rear panel) – 3
- Unboxed: 17” Wide x 15.5” Deep x 7” High (not counting feet)
- Unboxed: 17” Wide x 15.5” Deep x 7.525” High (with feet)
- Boxed: 22" Wide x 19" Deep x 10" High
- 30 lbs.
