RMC-1L CR8 8K Certified Refurbished Cinema Processor
If you are ordering from Emotiva Europe, the product cost includes all taxes and free shipping. It is higher than our USA product price which does not include any taxes. USA customers pay taxes as a separate line item fee added at checkout.
Product Overview
Product Features
8K HDMI 2.1
A new HDMI 2.1 (8K) board brings support for 4K/120Hz and 8K/60Hz video. You also get VRR, QMS (including QMS with VRR), Dolby Vision, IMAX Enhanced, eARC, and fast input switching. It’s built for modern players, streamers, and consoles.
CR8 Upgraded
CR8 units receive new core hardware, including the HDMI 2.1 (8K) board, ECC-2 control board, plus installed Wi-Fi antenna. They ship with the latest firmware and a newly registered Dirac Live license. Each one is burn-in tested and verified through full QC.

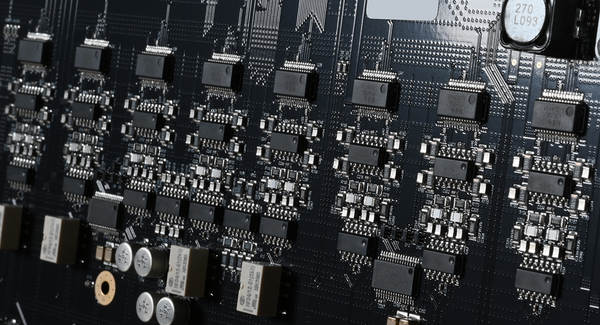

16 Balanced Channels
The RMC-1L platform provides 16 channels of main analog output on balanced XLR. Each channel uses an AKM4490 Verita DAC in fully balanced mono mode for serious multi-channel performance. Pair it with external amplification and scale your system as far as your room allows.
Dirac Live
Dirac Live is included and ready to calibrate your system to your room and speaker layout. It helps you tighten imaging and smooth overall balance across channels. Save settings and recall them when you want a different listening profile.
Web Based Control App
Take full control from any screen. Our web-based app control is device agnostic, so you can use your phone, tablet, or computer to access advanced setup, fine-tune system settings, and manage your home theater processor with a cleaner, more flexible interface. Whether you’re dialing in speaker levels, adjusting inputs, or customizing your system, deep control is always just a browser away.
Specs & Downloads
Digital Decoding Modes
Dolby Atmos®
Dolby TrueHD
Dolby Digital Plus
Dolby Digital 5.1
DTS:X™
DTS:X Pro™
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 5.1
PCM-Multi 5.1
PCM-Multi 7.1
Digital Post Processing Modes
Dolby Surround Upmixer (DSU)
Dolby Atmos Height Virtualization
DTS Neural:X upmixer
DTS Virtual:X
IMAX Enhanced (Coming Soon)
Audio Operating Modes
Reference Stereo (purist stereo mode)
Direct Mode (minimal processing; with bass management)
Stereo Mode
All Stereo Mode
Display
OLED (dual blue; high resolution 256 x 60 pixel graphical;
variable brightness)
OSD
Color OSD is displayed over live video, including 4k, 8k,
and 3D sources
(variable transparency; multiple operating modes provide different levels of
information)

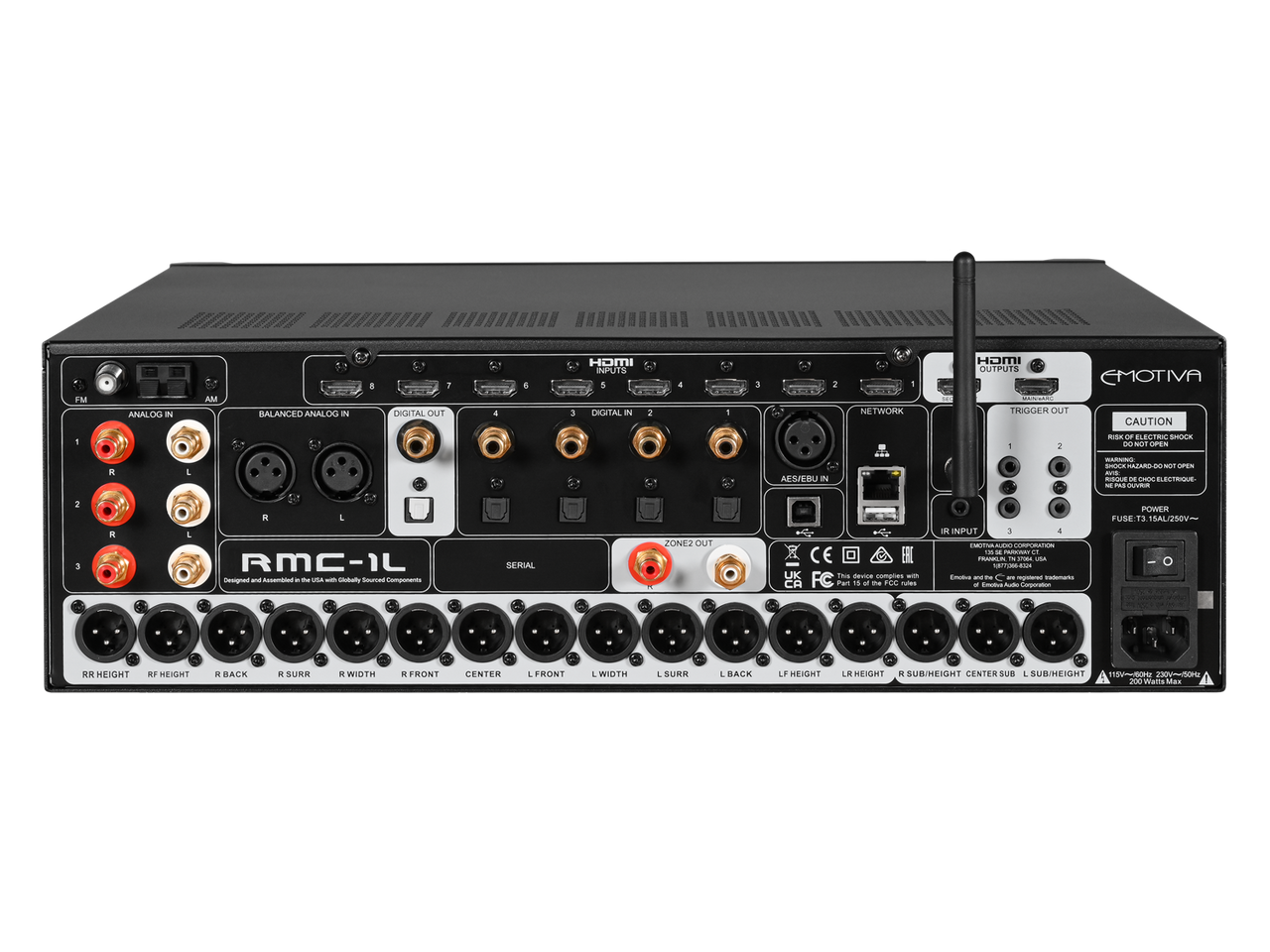

Analog Inputs
1 pair (stereo) – Reference quality analog audio (balanced;
XLR)
3 pair (stereo) – Reference quality analog audio
(unbalanced; RCA)
Digital Inputs
8 – HDMI 2.1 with Fast Port Switching (FPS), Variable Refresh Rate (VRR), and Fixed Rate Link (FRL)
4 – Toslink optical S/PDIF digital audio
4 – Coax (RCA) electrical S/PDIF digital audio
1 – AES/EBU (XLR) digital audio
2 – USB Type A digital data (for firmware updates and future
enhancements)
1 – USB Type B digital audio (“USB DAC” input)
1 – Ethernet port (RJ-45)
1 – Wifi antenna
Other Inputs
Internal high-performance AM/FM tuner
(antenna connections: FM - “F”
connector; AM - push terminals)
Wired IR remote control input
Analog Outputs
Output board: AKM4490 Verita DACs
16 channels – Reference quality main analog audio (balanced
XLR)
1 pair (stereo) – analog line level Zone 2 output
(unbalanced)
1 – high quality headphone output (1/8” stereo connector)
Digital Outputs
2 – HDMI 2.1
1 – Toslink optical S/PDIF digital audio
1 – Coax (RCA) electrical S/PDIF digital audio
4 – Independently programmable Trigger Outputs
Dimensions
Unboxed: 17” Wide x 15.5” Deep x 7” High (not counting feet)
Unboxed: 17” Wide x 15.5” Deep x 7.525” High (with feet)
Boxed: 22" Wide x 19" Deep x 10" High
30 lbs.
