XDA-3 Differential Reference DAC / Preamp

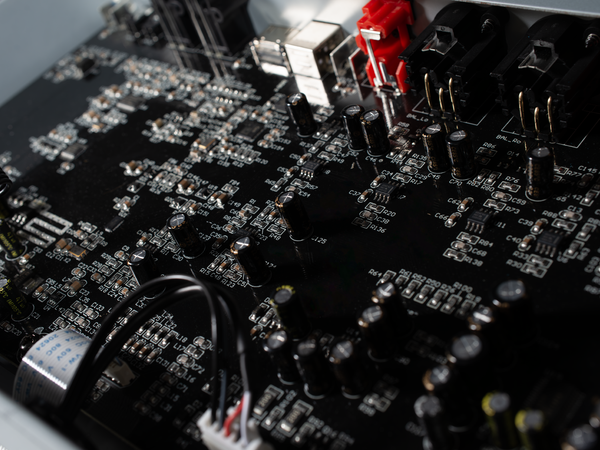

The XDA-3 is a high-performance two-channel audiophile DAC with a variety of digital inputs, including a very high-performance USB input, an HDMI-ARC input, and two stereo analog inputs. The XDA-3 features a fully balanced, fully differential analog signal path, and a true analog ladder network volume control for superb performance as both a DAC and a preamp.

Inputs

• 2 - Coaxial S/PDIF digital audio inputs.
• 2 - Toslink optical S/PDIF digital audio inputs.
• 1 - HDMI-ARC digital audio input

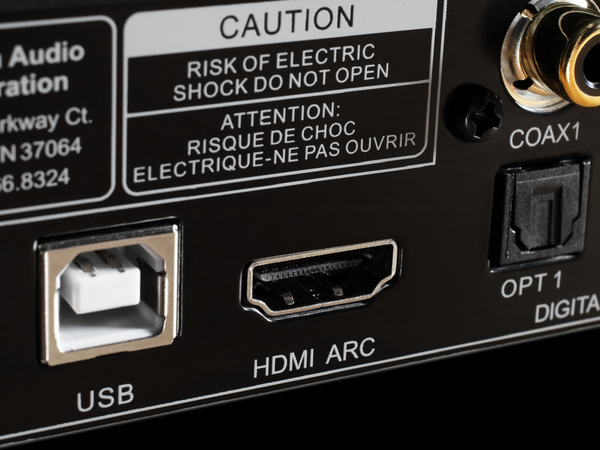

• 1 - High performance USB digital audio input.
• 1 pair - Balanced XLR analog audio input.
• 1 pair - Unbalanced RCA analog audio input.

Outputs

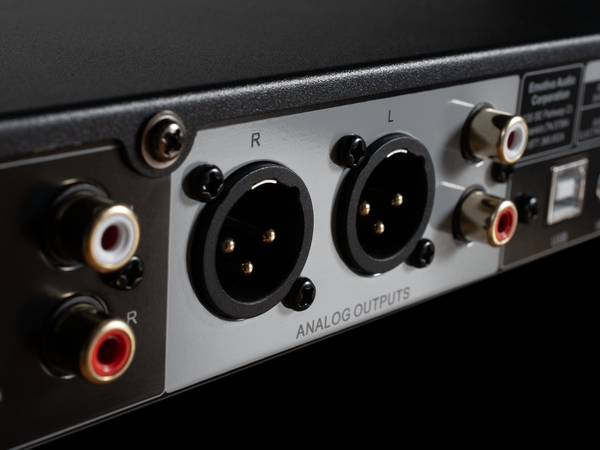

• 1 pair - Main Outputs (stereo; balanced / XLR), variable level.
• 1 pair - Main Outputs (stereo; unbalanced / RCA), variable level.
• 1 - Headphone output, 1/4” stereo, front panel

• Stereo PCM digital audio via USB at standard sample rates / bit depths up to 32/768k (no drivers required for Windows, Apple, and most Linux computers).
• Stereo DoP (DSD-over-PCM-over-USB) via USB at DoP64, DoP128, and DoP256 (ASIO driver or support required).
• Native DSD (DoP) via USB at DSD64, DSD128, DSD256, and DSD512 (ASIO driver and additional software support required).
• Stereo digital audio via S/PDIF (optical and electrical) at all standard sample rates and bit depths up to 24/192k.
• Stereo digital audio via HDMI-ARC (sample rates and bit depths determined by source).
• Analog audio via one pair of stereo Balanced (XLR) Inputs and one pair of stereo Unbalanced (RCA) Inputs.

• Digital to Analog Conversion: ESS ES9038Q2M SABRE32 Reference DAC (32-bit Stereo DAC with Hyperstream® II DAC architecture and Time Domain Jitter Eliminator).
• Headphone Amplifier: Texas Instruments TPA6120A2 (high-power, very high fidelity, current-feedback monolithic Class A/B headphone amplifier).
• Volume Control: NJW1195A (digitally controlled analog ladder network volume control).
• Analog Signal Path Active Electronics: OPA1656 (ultra-low-noise, low-distortion, FET-input, audio operational amplifiers).
• USB Interface: Comtrue CT7601 32-bit 768 kHz USB Audio Bridge (supports PCM up to 32/768k; DoP up to DoP256; native-DSD up to DSD512).

Rated Output

• 2.0 V RMS (RCA).
• 4.0 V RMS (XLR).

Analog Signal Path

• Frequency Response: 10 Hz to 55 kHz +0 /- 0.2 dB.
• Signal to Noise (S/N) Ratio: > 110 dB.
• Crosstalk: < 91 dB.
• THD: < 0.001% at 1 kHz.
• THD: < 0.0015% 20 Hz to 20 kHz.
• IMD: < 0.0005%.

Digital Signal Path

Frequency Response: 20 Hz to 20 kHz +/-0.1 dB (44.1k and above sample rates).

Signal to Noise (S/N Ratio: > 95 dB (44.1 kHz sample rate).

Signal to Noise (S/N Ratio: > 110 dB (48 kHz and above sample rates).

Crosstalk: < 100 dB.

THD: < 0.0035% (16 bits).

THD: < 0.002% (24 bits).

IMD: < 0.0025% (44.1k sample rate).

IMD: < 0.0005% (48 kHz and above sample rates).

NOTE:The frequency response with digital input signals is determined by the sample rate of the incoming digital signal and the oversampling filter selected.

Filter #1: Linear Phase Fast Roll-Off.

Filter #2: Linear Phase Slow Roll-Off.

Filter #3: Minimum Phase Fast Roll-Off.

Filter #4: Minimum Phase Slow Roll-Off.

Filter #5: Apodizing Fast Roll-Off.

Filter #6: Hybrid Fast Roll-Off.

Filter #7: Brick Wall.

Since the ideal filter alignment is both a matter of personal preference, and of the specific content you are listening to, we have provided a button that allows you to cycle through the various filter options right on the remote control. Press the Filters Button once to display the current filter; and press it multiple times to cycle through the available filter options.

Trigger

Trigger Input; Trigger Output (output +12V DC; input 5-12 V AC/DC).

Power Requirements

• 115 VAC or 230 VAC +/- 10% @ 50 / 60 Hz (automatically detected and switched).

Dimensions

• 17” wide x 2.25” high x 13.5” deep (includes feet and connectors).

Weight

• 8-1/2 pounds (unboxed).
