BasX A5+ Five-Channel Power Amplifier

Black audio amplifier with 'Emotiva' branding on a white background
BasX A5+ Five-Channel Power Amplifier
New
$899.00
$899.00
Agotado
  • Black audio amplifier with 'Emotiva' branding on a white background
  • Back view of an audio equipment rack with various connectors on a white background
  • Black electronic device with Emotiva branding on a white background
  • Black amplifier with control panels on a white background
  • top down view of an audio amplifier with visible wiring and components on a white background
  • Close-up of audio equipment with various connectors on a black background
  • EMOTIVA high current ultra low noise toroidal transformer on a dark background
  • Close-up of EMOTIVA ultra low ESR capacitors on a circuit board with visible branding.
  • Close-up of a textured black surface with blurred red and black background
  • Close-up of a metallic surface with a honeycomb pattern
1 of 1

Earn 5000 Reward Points with this purchase

Earn Reward Points with Every Purchase

  • 100 pts = $5
  • Spend on future purchases and upgrades
  • $100 min for points redemption
  • Points expire after 6 months of inactivity
Learn more

  • Free Shipping over $99

    We ship free within the contiguous 48 states in the US, and in select countries in Europe. Additional shipping charges apply for excluded shipping locations. Shipping options and rates are available at checkout.

  • Direct to consumer, no retail markups

  • Designed in the USA

If you are ordering from Emotiva Europe, the product cost includes all taxes and free shipping. It is higher than our USA product price which does not include any taxes. USA customers pay taxes as a separate line item fee added at checkout.

Need Help?

1-615-790-6754
FAQs

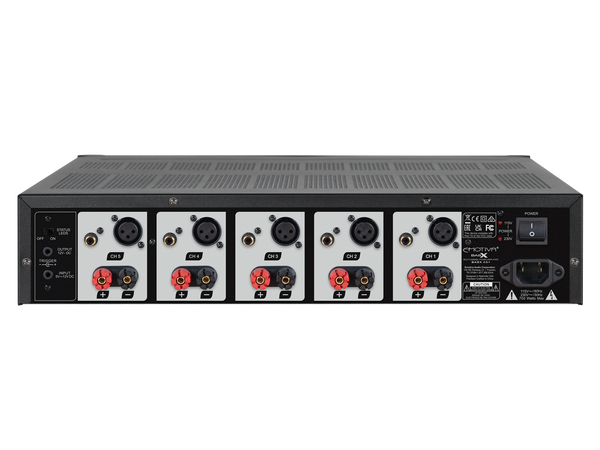

Back view of an audio equipment rack with various connectors on a white background

Product Overview

Real power for the speakers that do the hard work.

The BasX A5+ Five-Channel Power Amplifier adds dedicated amplification to your main home theater speakers: left, center, right, and surrounds. That takes the load off your receiver, so it can focus on processing and control instead of trying to power everything at once. The payoff is cleaner dynamics, clearer dialogue, and a system that stays composed when scenes get loud.

The A5+ is rated at 95 watts RMS per channel into 8 ohms (20 Hz to 20 kHz, all channels driven, THD < 0.02%). Inside, a fully discrete Class A/B output stage and a linear power supply with a heavy duty toroidal transformer deliver stable, confident power without sounding edgy or strained.

The major BasX Plus upgrade is connectivity. The A5+ includes balanced XLR and unbalanced RCA inputs on every channel, so it pairs easily with everything from traditional AVRs to fully balanced processors. If your gear supports XLR, it can help keep things quieter, especially with longer cable runs. If not, RCA has you covered.

Built-in protection guards against common fault conditions, 12V trigger connections make system power control easy, and the A5+ is rated for 8 ohm speakers while supporting 4 ohm operation.

Common uses:

  • Power a full 5.1 system with a processor or an AVR with PRE OUTs
  • Upgrade an AVR by powering the main five speakers for more headroom and control
  • Drive LCR plus surrounds and let your AVR handle height channels

Want to know how the A5+ can enhance your system? Contact us. We’re here to help!

Product Features

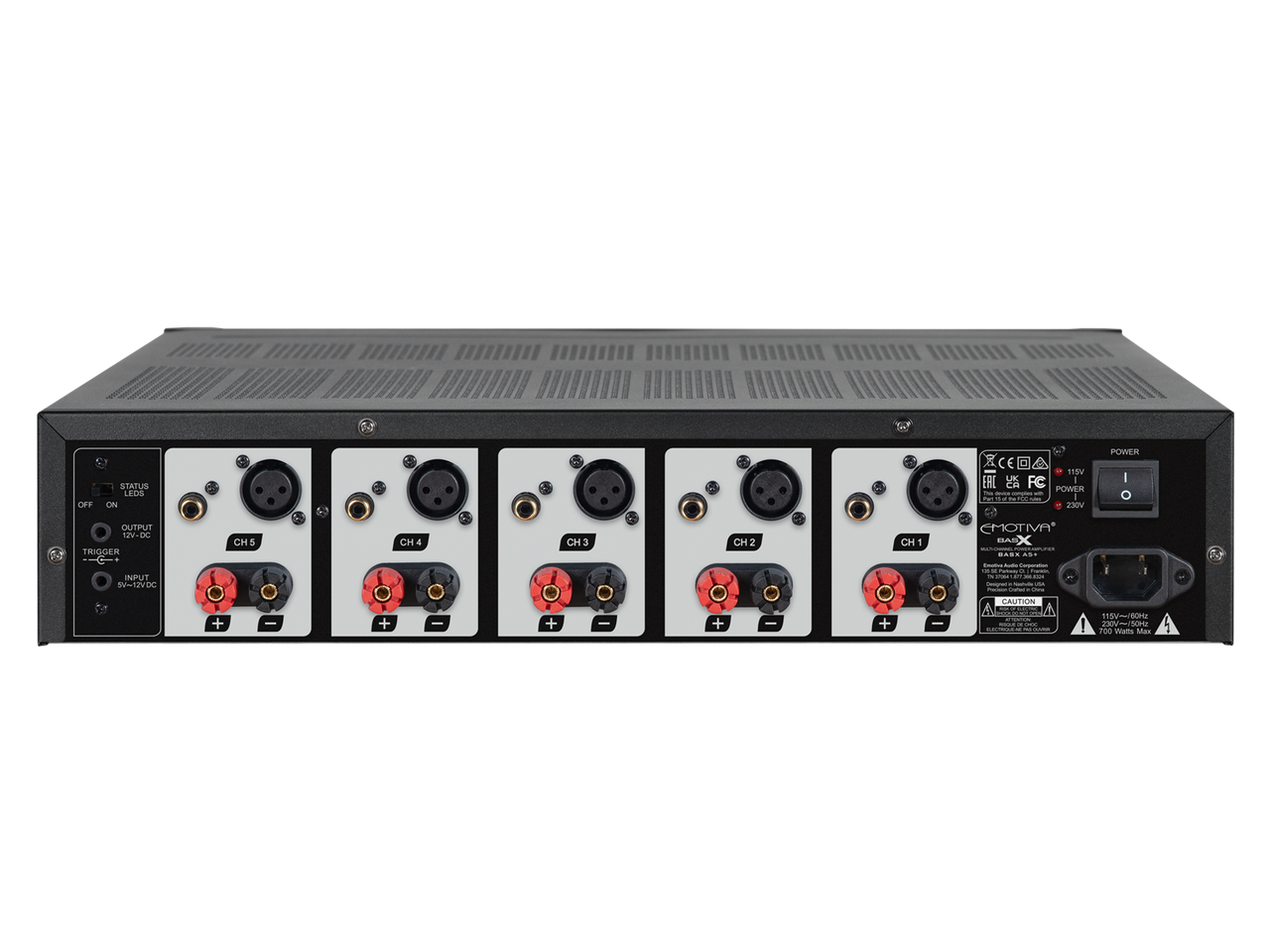

Back view of an audio equipment rack with various connectors on a white background

Five Channels of Clean Power

The BasX A5+ delivers five channels of dedicated Class A/B amplification, rated at 95 watts RMS per channel into 8 ohms (20 Hz to 20 kHz, all channels driven). The payoff is better control and cleaner dynamics when your system gets demanding.

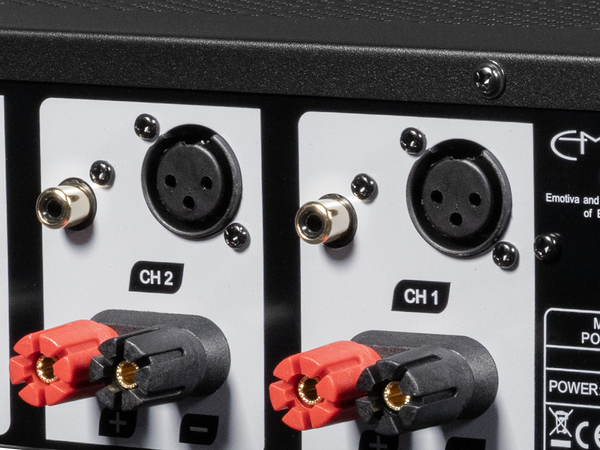

Close-up of audio equipment with XLR and RCA connectors on a black background

Balanced Inputs Included

Every channel includes both balanced XLR and unbalanced RCA inputs. If your gear supports XLR, it can help keep noise down, especially with longer cable runs. If not, RCA gives you easy, universal compatibility.

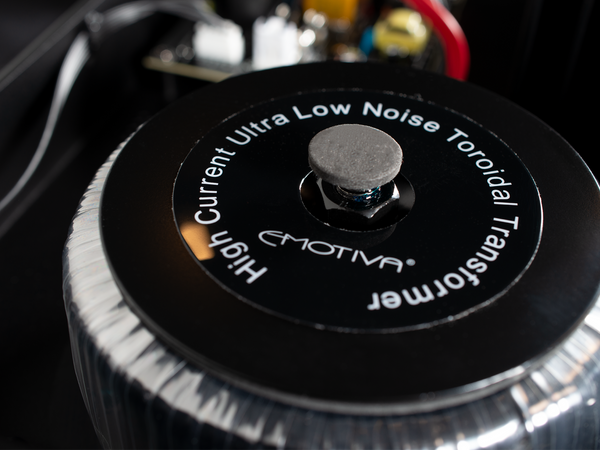

EMOTIVA high current ultra low noise toroidal transformer on a dark background

Toroidal Power Supply

A linear power supply with a heavy duty toroidal transformer provides stable current delivery. That helps bass stay firm and keeps loud moments sounding clean instead of strained.

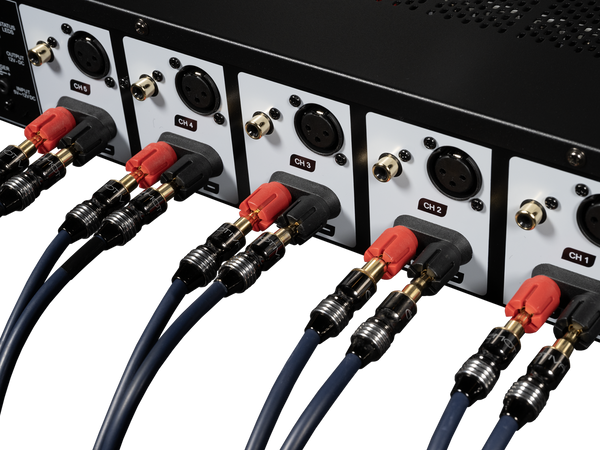

Audio equipment with cable connectors on a white background

Easy To Connect

Audiophile grade 5-way binding posts accept banana plugs, spades, or bare wire. Trigger input and trigger output make it easy to have the amp turn on and off with the rest of your system.

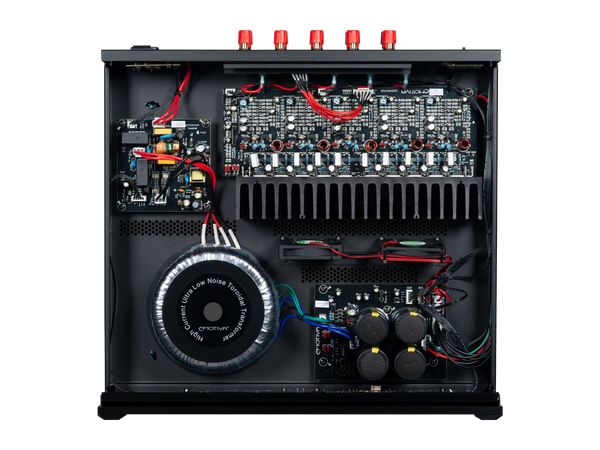

top down view of an audio amplifier with visible wiring and components on a white background

4-Ohm Capable

Rated for 8 ohm speakers with a minimum load impedance of 4 ohms, the A5+ works with a wide range of real-world speakers. Built-in protection guards against temperature issues, shorts, ground faults, and other common fault conditions.

Specs & Downloads

Complete Your Audio Solution

These products work great with BasX A5+ Five-Channel Power Amplifier
Center Channel Loudspeaker
$399.00
$399.00
A pair of Airmotiv XT1 black floor standing tower loudspeakers with multiple driver units visible.
Three-Way Floorstanding Tower Loudspeakers
$999.00
$999.00
A black Airmotiv XA2 height/surround/ceiling/reflective speaker with visible tweeter and woofer.
$499.00
$499.00
Pre-order
Front photo of XMC-2+ showing digital display and controls
16 Channel Dolby Atmos & DTS:X Home Theater Processor
$3,999.00
$3,999.00

FAQ

The A5+ is a five-channel power amplifier. It takes the audio signal from your receiver or processor and provides the power that drives your speakers.

It can power five speakers at once, usually your front left, center, front right, and two surround speakers.

It will work if your receiver has preamp outputs, often labeled “PRE OUT.” Those outputs send the audio signal to an external amplifier like the A5+. If your receiver does not have preamp outputs, the A5+ is not the right match.

The A5+ is rated at 95 watts RMS per channel into 8 ohms from 20 Hz to 20 kHz, with all channels driven, and THD less than 0.02%.

Yes. It is rated for 8-ohm loads and has a minimum load impedance of 4 ohms.

Connectivity. Every channel includes both balanced XLR and unbalanced RCA inputs.

Use XLR if your processor or receiver has balanced outputs. It can help reject noise, especially with longer cable runs. Use RCA for standard compatibility with most gear.

No. On each channel, the XLR and RCA inputs remain active and are summed at the input. Use only one input type per channel.

No. Auto-On is only available on the BasX A2+, A3+, and A2L+. The A5+ is turned on with the front Standby button or by using a 12V trigger.

When the trigger input sees 5 to 12 volts (AC or DC), the amp switches on from standby. When the trigger signal is removed, it returns to standby. The trigger output provides 12V DC to turn on other devices. (Trigger input requires less than 10 mA. Trigger output can drive up to 120 mA.)

The A5+ uses 5-way binding posts, so banana plugs, spades, or bare wire all work.

Give it good airflow and do not block the vents. The Class A/B output stage can generate substantial heat when operating at high power for extended periods.

No. It operates on 115V or 230V at 50/60 Hz and automatically detects and configures itself for your local line voltage.

You get the amplifier, a high quality commercial AC power cable, a trigger cable, and a printed user manual.

The chassis is 17 inches wide, 15-1/2 inches deep, and 4-1/4 inches high including feet (or 3-1/2 inches high without feet). The A5+ weighs 25.2 pounds unboxed.

It includes a three-year, transferable warranty.
