One of the important features offered by the Emotiva RMC-1 is expandability.
We are pleased to announce the release of the first two expansion modules for the RMC-1: a high-performance phono preamp and an input module that adds two additional stereo-balanced analog inputs to the one already available in the RMC-1.
The Phono Preamp Input Module allows you to add the same features and performance available in our highly acclaimed XSP-1 phono preamp to your RMC-1 in the form of a convenient internal module. It supports both moving magnet (MM) and moving coil (MC) cartridges, with very low noise and distortion, exceptionally accurate RIAA equalization, and user-selectable load impedances choices for moving coil cartridges.

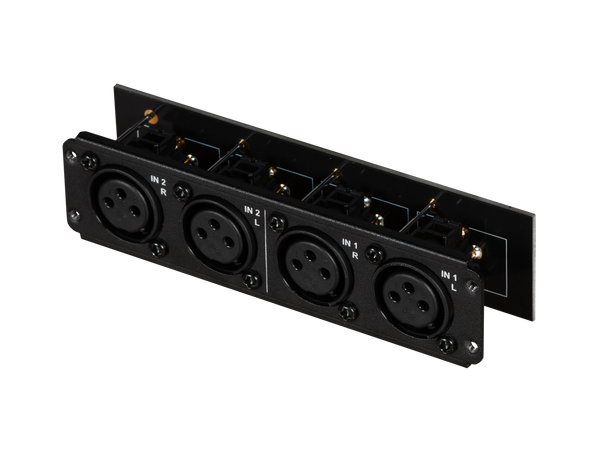

The Balanced Input Module adds two more fully balanced analog stereo inputs to the one already present in the RMC-1. The performance and specifications of these inputs are the same as those of the original internal balanced input.
Expansion Slot #1 and Expansion Slot #2 on the RMC-1 are allocated for this type of expansion modules. Either of these modules may be installed in either of those slots and they may be installed in any combination. Expansion Slot #3 is reserved for other types of expansion modules.
We strongly recommend that you send your RMC-1 in, so we can install your modules for you, and fully test your RMC-1 to make sure everything is working perfectly afterwards. However, if you prefer, we also offer a self-install option. If you send your unit in, the price includes the $25 service fee.
RMC-1 Phono Preamp Input Expansion Module
- Input Impedance:
MM:47K Ohms.
MC: User selectable between 47, 100, 470, 1k Ohms. - Gain:
MM: 40 dB.
MC: 60 dB. - Frequency Response:
MM: RIAA + / – 0.12 dB, 20 Hz – 20 kHz.
MC: RIAA + / – 0.25 dB, 20 Hz – 20 kHz. - Signal to Noise Ratio (S/N; A weighted):
MM: > 96 dB.
MC: > 79 dB. - THD:
MM: <0.0075 % @ 1 kHz; < 0.02%, 20 Hz – 20 kHz.
MC: <0.006 % @ 1 kHz; < 0.05%, 20 Hz – 20 kHz.

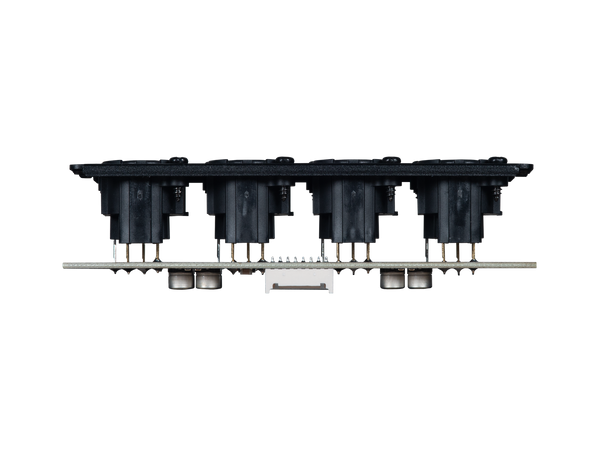

RMC-1 Balanced Input Expansion Module
- Number and type of inputs:
Two independent inputs; each stereo and fully balanced. - Connections:
1 pair of XLR balanced input connectors per input.
(2 pairs total). - Electrical Specifications:
Identical to RMC-1 internal balanced stereo input.
Downloads
Quick Installation Instructions
Full Installation Guide
