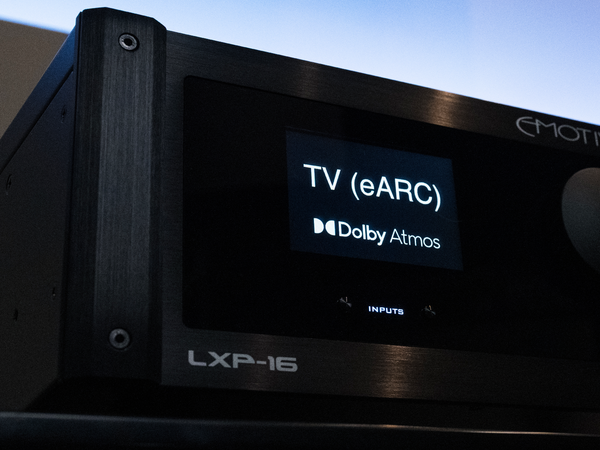

LXP-16 Immersive Cinema Processor
If you are ordering from Emotiva Europe, the product cost includes all taxes and free shipping. It is higher than our USA product price which does not include any taxes. USA customers pay taxes as a separate line item fee added at checkout.
Product Overview
Product Features
Immersive Format Support
Build the system around your room and listening goals. The LXP-16 supports Dolby Atmos, DTS:X Pro, with configurations up to 9.4.6 channels for immersive surround sound with convincing height, depth, and scale.
Complete Dirac Live Suite
Dirac Live Room Correction, Dirac Live Bass Control, and Dirac Active Room Treatment are included with the LXP-16, along with a calibrated microphone. The complete suite gives you powerful tools for refining speaker integration, bass performance, and the acoustic effects of your room without purchasing additional Dirac licenses.

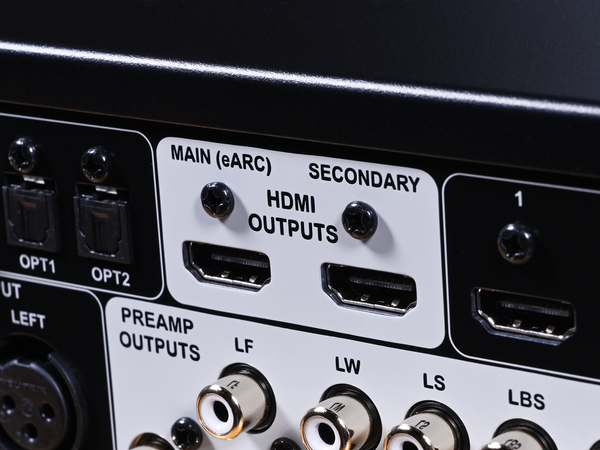

8K HDMI 2.1 Passthrough
Two HDMI 2.1 outputs support 8K video and Dolby Vision. Video passes through to your display without resampling or rescaling, keeping the processor focused on sound while your display handles the picture.

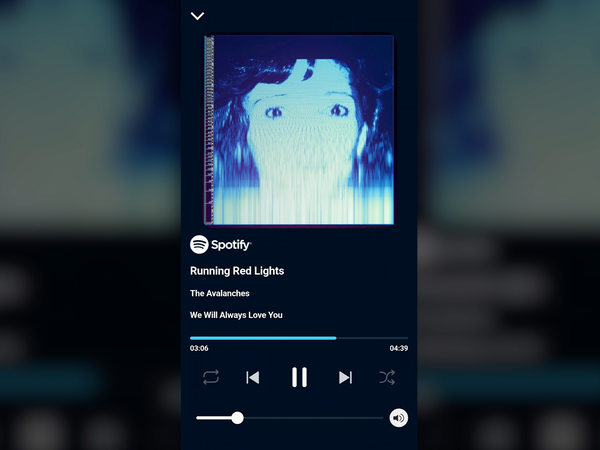

Emersa™ Streaming Engine
Music listening does not require a second device as the internal Emersa™ streaming engine supports TIDAL Connect, Qobuz Connect, Spotify Connect, DLNA, Google Cast, Bluetooth, and USB playback. For day-to-day use, the Emotiva Emersa Control app gives you a simpler way to control the LXP-16 and get to the content you want to enjoy.

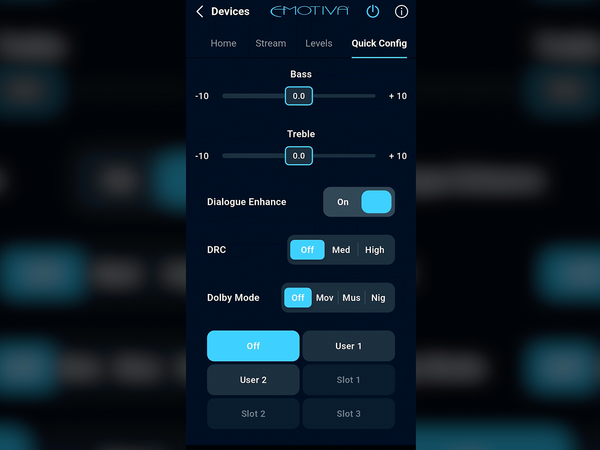

Emersa™ Control App
The Emotiva Emersa™ Control app keeps the functions you use most easy to reach. Adjust volume, change inputs and listening modes, make quick sound adjustments, access supported streaming services, or browse compatible music from your network and connected USB storage without working through deeper setup menus.

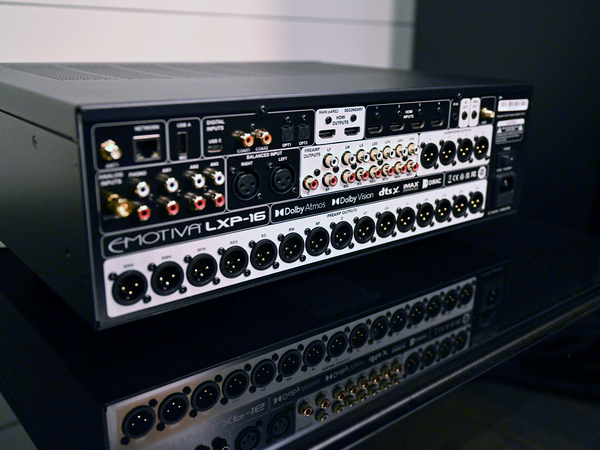

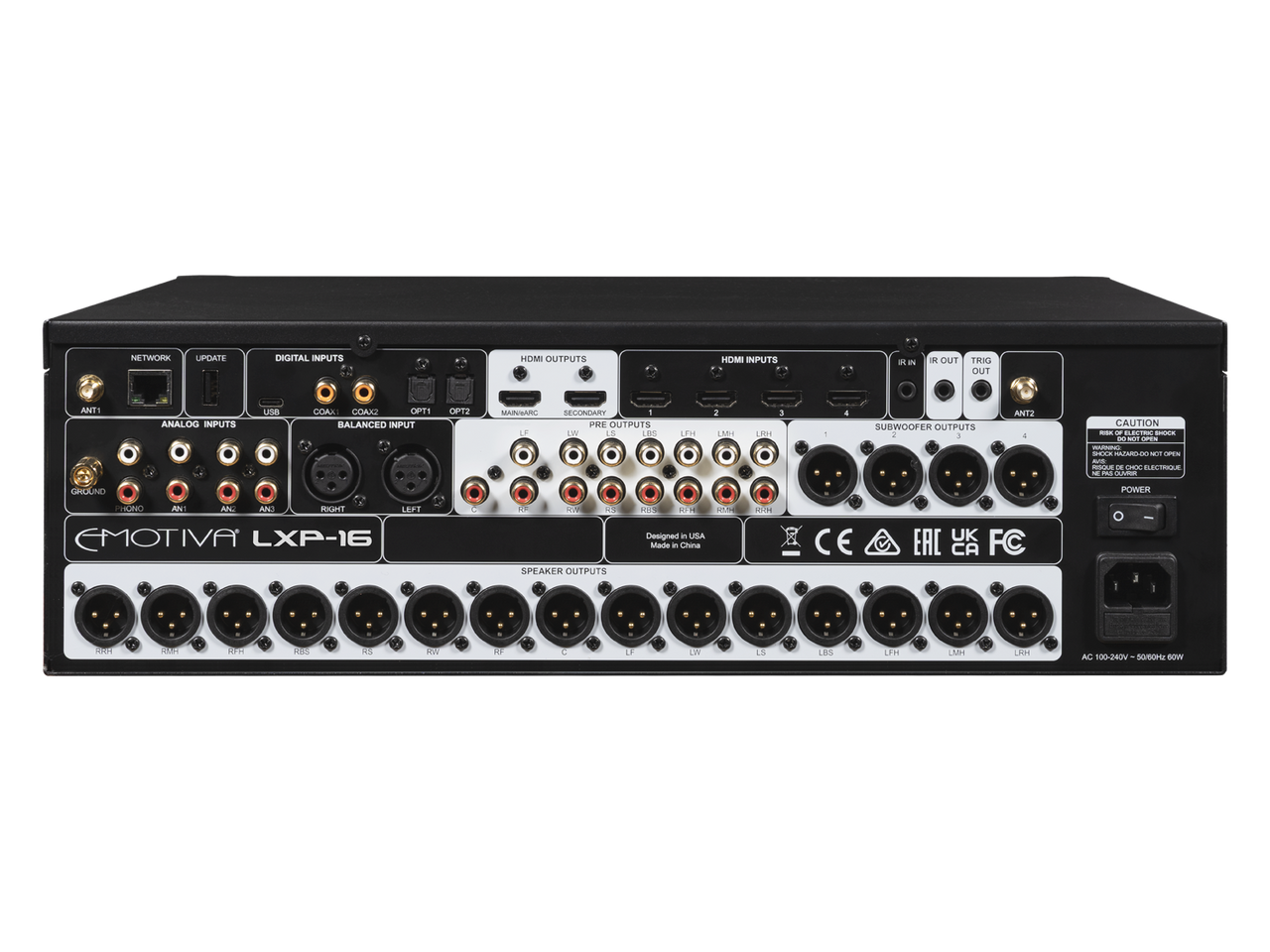

Balanced XLR Connectivity
Fifteen balanced XLR preamp outputs and four independent subwoofer outputs give you balanced connectivity throughout a multichannel system. Connect the LXP-16 to compatible amplifiers and subwoofers using balanced connections across the system, not just the front channels.
Specs & Downloads
Video:
All Inputs on the LX-16 support HDMI 2.1, including Variable Refresh Rate (VRR), 8k UHD video with Fixed Rate Link (FRL) and Fast Port Switching (FPS), and support for IMAX Enhanced, Dolby Vision, HDR10+ and HLG.
Video Inputs:
(4) HDMI Inputs (all HDMI 2.1)
Video Outputs:
(2) HDMI Outputs (both HDMI 2.1; with ARC and eARC support on Primary Output)
Analog Audio Inputs:
(3 pairs) Line Level Analog Audio Inputs (stereo; unbalanced RCA)
(1 pair) Line Level Analog Audio Inputs (stereo; balanced XLR)
(1 pair) Phono Inputs (stereo; Moving Magnet)
Digital Audio Inputs:
(2) Coax S/PDIF (support up to 24/192k)
(2) Optical Toslink S/PDIF (support up to 24/192k)
(1) USB-C Audio Input (“DAC Input”; PCM 2.0; standard sample rates up to 768k)
(1) USB-A “USB stick” (play all standard files types from USB stick or hard drive)
Analog Audio Outputs (full support for up to 9.1.6 channels with up to 4 separate subs):
(15) Line Level Analog “Preamp Outputs” (full surround; unbalanced; RCA)
(15) Line Level Analog “Preamp Outputs” (full surround; balanced; XLR)
(4) Line Level Analog Subwoofer Outputs (independent; balanced; XLR)
Network:
Ethernet (standard wired; RJ-45 connector)
WiFi (internal with rear panel antenna)
Bluetooth (internal with rear panel antenna)
Bluetooth can be configured as an Input or a Bluetooth Transmitter. Transmit mode can send audio to Bluetooth headphones or speakers.
Control:
Trigger Output (standard +12VDC)
IR In (accepts signal from an IR repeater)
IR Out (can be used to power external “IR flasher”)
Dimensions:
17” Wide x 13” Deep x 6-1/4” High (add 3” depth for knobs and connectors)
Weight:
14 Pounds (unboxed)
Power Requirements:
100-120VAC / 220-240VAC at 50 / 60 Hz; 60 Watts.
(measured at Preamp Outputs)
Maximum Output Level:
8V RMS (balanced XLR outputs)
4V RMS (unbalanced RCA putputs)
Frequency Response:
20 Hz - 22 kHz +/-0.14 dB (analog)
20 Hz - 22 kHz +/-0.18 dB (digital)
Total Harmonic Distortion + Noise (THD+N):
< 0.0008% (1 kHz; A-weighted; line level sources)
< 0.003% (1 kHz; A-weighted; phono input)
Signal-to-Noise Ratio (S/N):
> 110 dB (analog line level sources)
> 115 dB (digital sources)
> 98 dB (phono input)
