LXR-11 Immersive Cinema Receiver

Emotiva LXR-11 AV receiver in black, featuring a digital display screen showing 'HDMI 1 Dolby Atmos' and 'VOL 27 Surround' alongside a central volume knob.
LXR-11 Immersive Cinema Receiver
Coming Soon
$5,999.00
$5,999.00
Agotado
  • Emotiva LXR-11 AV receiver in black, featuring a digital display screen showing 'HDMI 1 Dolby Atmos' and 'VOL 27 Surround' alongside a central volume knob.
  • Rear panel of an LXR16 AV receiver or amplifier, showing multiple audio and video input connectors including XLR, RCA, HDMI, USB-C, and optical ports on a white background.
1 of 1
Notify Me When Available

Earn 5000 Reward Points with this purchase

Earn Reward Points with Every Purchase

  • 100 pts = $5
  • Spend on future purchases and upgrades
  • $100 min for points redemption
  • Points expire after 6 months of inactivity
Learn more

  • Free Shipping over $99

    We ship free within the contiguous 48 states in the US, and in select countries in Europe. Additional shipping charges apply for excluded shipping locations. Shipping options and rates are available at checkout.

  • Direct to consumer, no retail markups

  • Designed in the USA

If you are ordering from Emotiva Europe, the product cost includes all taxes and free shipping. It is higher than our USA product price which does not include any taxes. USA customers pay taxes as a separate line item fee added at checkout.

Need Help?

1-615-790-6754
FAQs

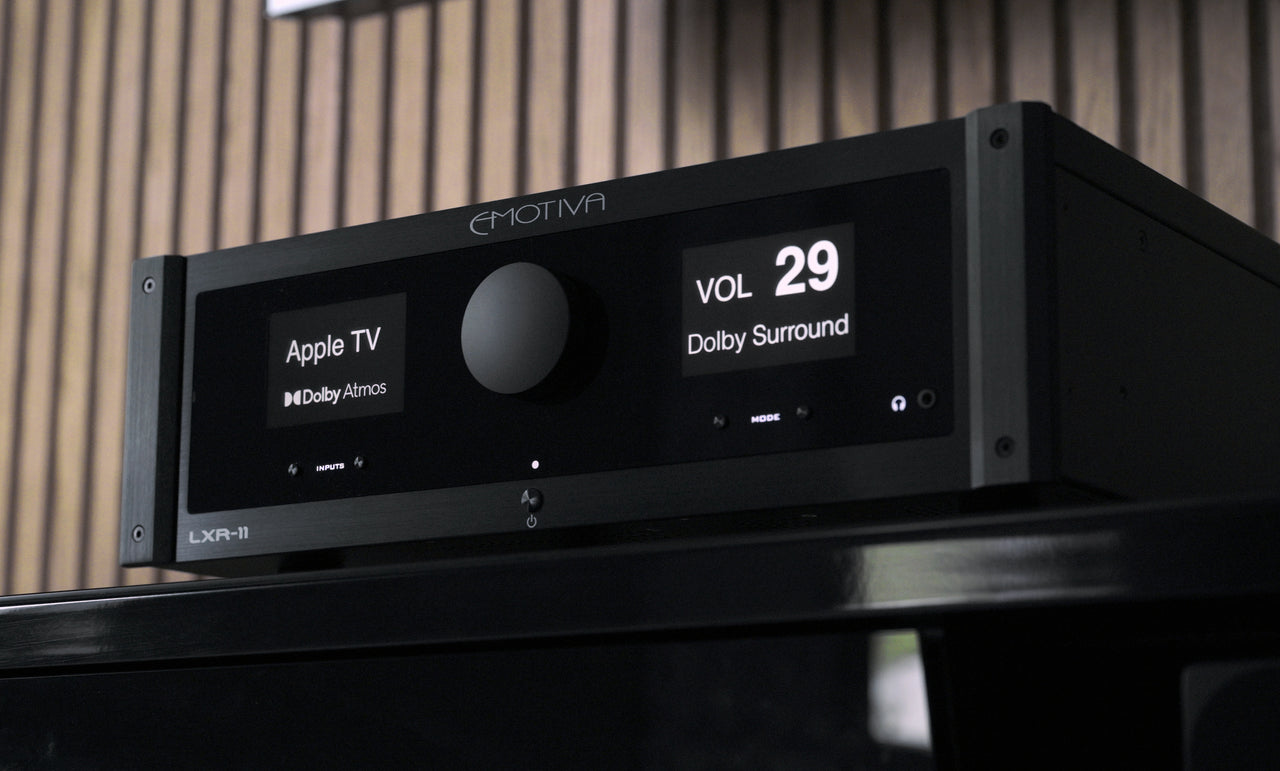

A black Emotiva LXR-11 AV receiver with a digital display screen, resting on a dark stand against a wooden slatted background.

Product Overview

The LXR-11 Immersive Cinema Receiver sets a new standard for power, ease of use, and performance. With eleven channels of Hypex NCOREx amplification on board it provides a powerful foundation for a serious immersive theater experience without requiring a rack of separate power amps. With built-in processing and support for systems up to 9.4.6 channels, there is capability to expand as your system needs grow.

Support for Dolby Atmos, DTS, Dolby TrueHD, and DTS Pro, and IMAX handles today’s major surround and immersive formats with ease. HDMI 2.1 connectivity supports 8K/60Hz, 4K/120Hz, Dolby Vision, HDR10+, VRR, ALLM, and more. A fully licensed and included Dirac Live Room Correction, Dirac Live Bass Control, and Dirac Active Room Treatment software suite provides a complete set of tools optimizing acoustic performance.

Music listening does not require a second device as the internal Emersa™ streaming engine supports TIDAL Connect, Qobuz Connect, Spotify Connect, DLNA, Google Cast, Bluetooth, and USB playback. For day-to-day use, the Emotiva Emersa™ Control app gives you a simpler way to control the LXR-11 and get to the content you want to enjoy.

Product Features

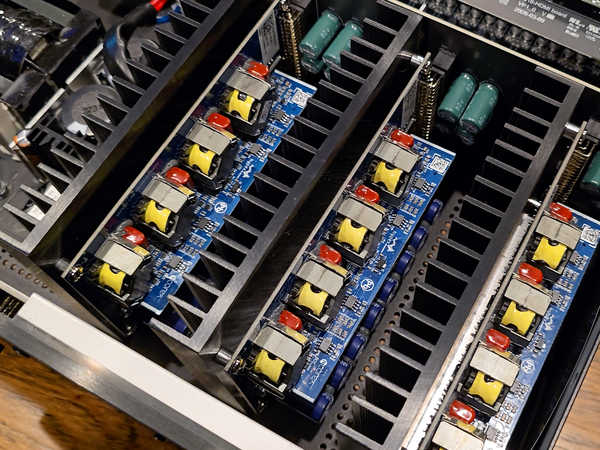

Close-up of an electronic power supply or amplifier chassis showing internal circuit boards with blue PCBs, yellow and red components, and green capacitors.

Eleven Channels of NCoreX Power

Eleven channels of Hypex NCOREx amplification are already on board, so you can build a substantial immersive system without adding separate power amplifiers from the start. It is a simple way to get into a high performance theater while keeping your options open for future upgrades.

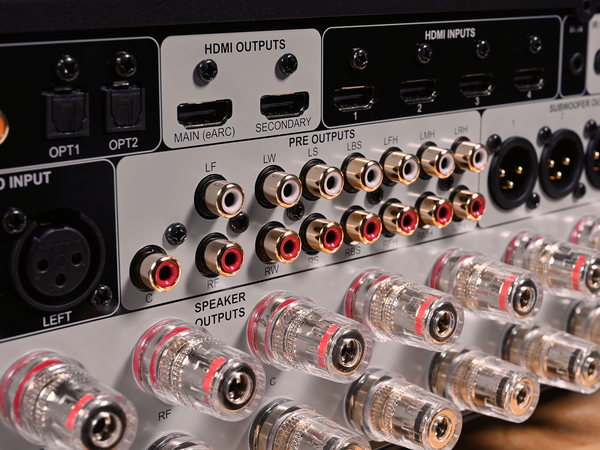

Close-up of the rear panel of an audio receiver or amplifier, showing HDMI outputs, HDMI inputs, optical inputs, speaker outputs, and multiple clear speaker connectors with red rings.

More Ways to Configure

The LXR-11 can process systems up to 9.4.6 channels, with 15-channel preamp outputs plus four dedicated XLR subwoofer outputs ready for a larger system. Add external amplification to the channels that need it, or transition toward a separates-based system as your needs evolve.

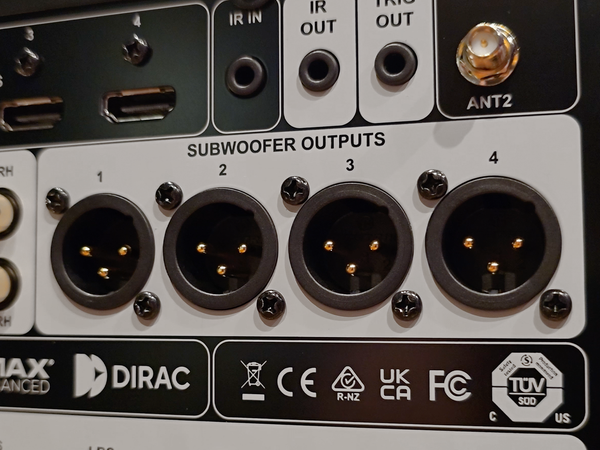

Close-up of the rear panel of a Dirac Advanced subwoofer, showing four XLR subwoofer outputs labeled 1 through 4, along with IR IN, IR OUT, TRK OUT, ANT2, and various certification logos.

Four Independent Subwoofer Outputs

Four balanced XLR subwoofer outputs can be adjusted independently and integrated using the included Dirac room correction suite. That gives you the flexibility to configure and calibrate multiple subwoofers as part of the complete system rather than treating them as a single output.

Four colored feature tiles on a black background: a white DIRAC logo at top left, a purple tile labeled 'Room Correction' with overlapping white circles, a blue tile labeled 'Bass Control' with a white loop shape, and a green tile labeled 'ART' with a white four-leaf motif.

Dirac Live Included

Dirac Live Room Correction, Dirac Live Bass Control, and Dirac Active Room Treatment are included with the LXR-11, along with a Dirac approved and calibrated measurement microphone. You have access to the complete set of room and bass optimization tools without purchasing additional Dirac licenses or hardware.

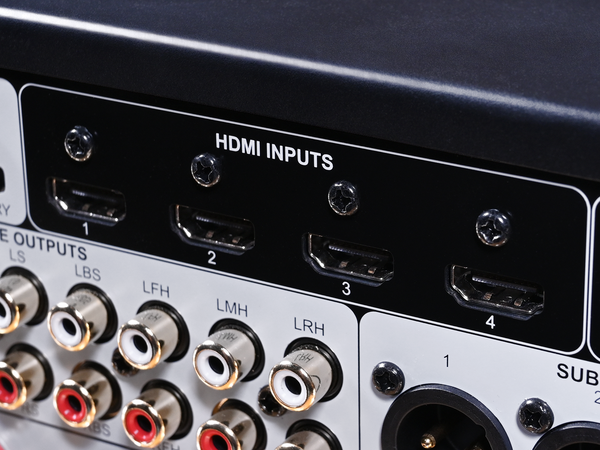

Close-up of the rear panel of an audio receiver or amplifier, showing four HDMI input ports labeled 1 through 4, with audio output RCA jacks and other connectors below.

HDMI for Modern Sources

Four HDMI 2.1 inputs support 8K/60Hz and 4K/120Hz video along with Dolby Vision, HDR10+, VRR, ALLM, QMS, and QFT. Incoming video passes through without resampling or rescaling, and two HDMI outputs give you added flexibility for systems with more than one display.

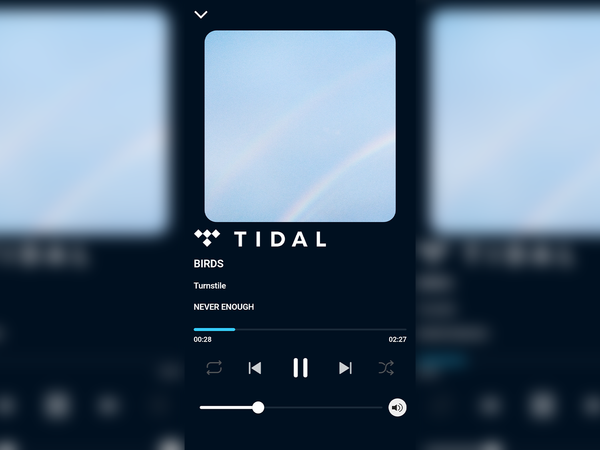

A digital screenshot of the Tidal music player interface showing the song 'Birds' by Turnstile from the album 'Never Enough'. The central player card is dark navy blue with white text and icons, set against a blurred background of the same app design.

Emersa™ Streaming

Emersa™ streaming is part of the receiver, with support for TIDAL Connect, Qobuz Connect, Spotify Connect, DLNA, Bluetooth, and USB playback. Select an album, playlist, or music from your own collection without adding a separate streaming component to the system.

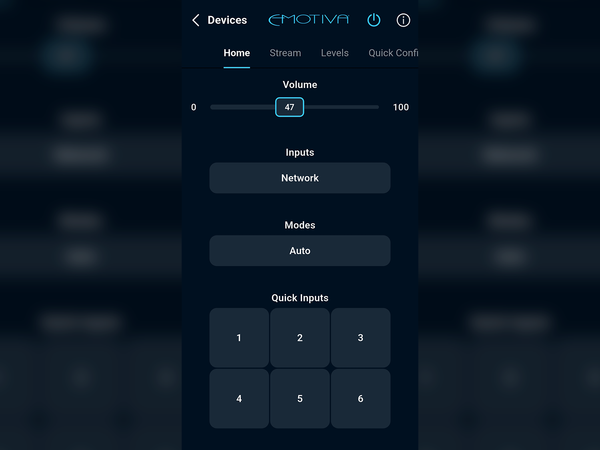

A dark mobile app interface showing device settings under the brand name EMOTIVA, with a volume slider at 47, tabs for Home, Stream, Levels, and Quick Config, and numeric quick-input buttons.

Emersa™ Control App

The Emotiva Emersa™ Control app puts the controls you reach for most in a simpler interface. Change volume, inputs, or listening modes, make quick sound adjustments, access supported streaming services, and browse compatible music on your network or connected USB storage without digging through deeper setup menus or separate control apps.

Specs & Downloads

These products work great with the LXR-11 Immersive Cinema Receiver

Complete Your Audio Solution
Black subwoofer on a white background
$399.00
$399.00
Best Seller
A black Airmotiv XA2 height/surround/ceiling/reflective speaker with visible tweeter and woofer.
$329.00
$329.00
Best Seller
A pair of black Airmotiv XT3 floorstanding tower loudspeakers with multiple drivers visible on the front panel.
Three-Way Floorstanding Tower Loudspeaker
$1,699.00
$1,699.00
Sold Out
A black, large format, three-way Airmotiv XC3 center channel loudspeaker with multiple woofers and a ribbon tweeter.
Center Channel Loudspeaker
$599.00
$599.00

FAQ

The LXR-11 includes eleven channels of internal amplification, so it can power up to eleven speakers directly. Its processing section supports larger configurations up to 9.4.6 channels when additional external amplification is connected.

With three channels driven, the LXR-11 is rated at 140 watts per channel into 8 ohms and 240 watts per channel into 4 ohms, measured from 20 Hz to 20 kHz at 0.02% THD. With seven channels driven, it is rated at 120 watts per channel into 8 ohms at 1 kHz with less than 0.02% THD.

Yes. The LXR-11 provides 15 RCA preamp outputs, so you can add external amplification for selected channels as your system grows. You can also disable the internal amplifiers and use the LXR-11 entirely as a preamp/processor if you decide to move to separate power amplifiers.

The LXR-11 supports up to four subwoofers through four independent balanced XLR outputs. Each subwoofer has its own level and distance adjustment and can be calibrated individually through the included Dirac room correction system.

Every LXR-11 includes a prepaid license for Dirac Live, Dirac Live Bass Control, and Dirac Active Room Treatment, as well as a calibrated measurement microphone. The license is tied to the receiver, so there is no separate license key to purchase or activate.

The four HDMI 2.1 inputs support video up to 8K/60Hz and 4K/120Hz, along with HDR10, HDR10+, Dolby Vision, VRR, ALLM, QMS, and QFT. The primary HDMI output also supports ARC and eARC.

Yes. The LXR-11 is designed to work as an everyday music system as well as a home theater receiver, and the Emersa™ Control app gives you convenient access to common controls and compatible music sources without relying on the receiver’s on-screen menus. Whether you are streaming music or playing compatible files from your network or connected USB storage, the controls you use most stay close at hand.

Yes. The LXR-11 includes two HDMI 2.1 outputs that can operate at the same time or be enabled individually. When both displays are active, the connected source will negotiate a video format that both displays support.

Its HDMI 2.1 connections support 4K/120Hz along with VRR, ALLM, QMS, and QFT, making it well suited to compatible current-generation consoles and gaming displays. Actual feature availability will depend on the source, display, content, and HDMI settings in the system.

Yes. The built-in Emersa™ streaming engine supports Tidal Connect, Qobuz Connect, Spotify Connect, DLNA, and Bluetooth, and the LXR-11 can also play compatible audio files from USB storage.

Yes. The LXR-11's Bluetooth module can operate as a transmitter, allowing audio to be sent to compatible Bluetooth headphones or speakers.

Yes. The dedicated phono input is designed for turntables with Moving Magnet cartridges. A Moving Coil cartridge will require a compatible external phono preamp connected to one of the LXR-11's line-level analog inputs.

The LXR-11 is covered by Emotiva's five-year warranty. Full warranty terms and service procedures are available from Emotiva.
