Power. Performance. Precision.

FINALLY, A RECEIVER WITH REAL POWER. DESIGNED FOR THE MUSIC LOVER AND CINEMA ENTHUSIAST.

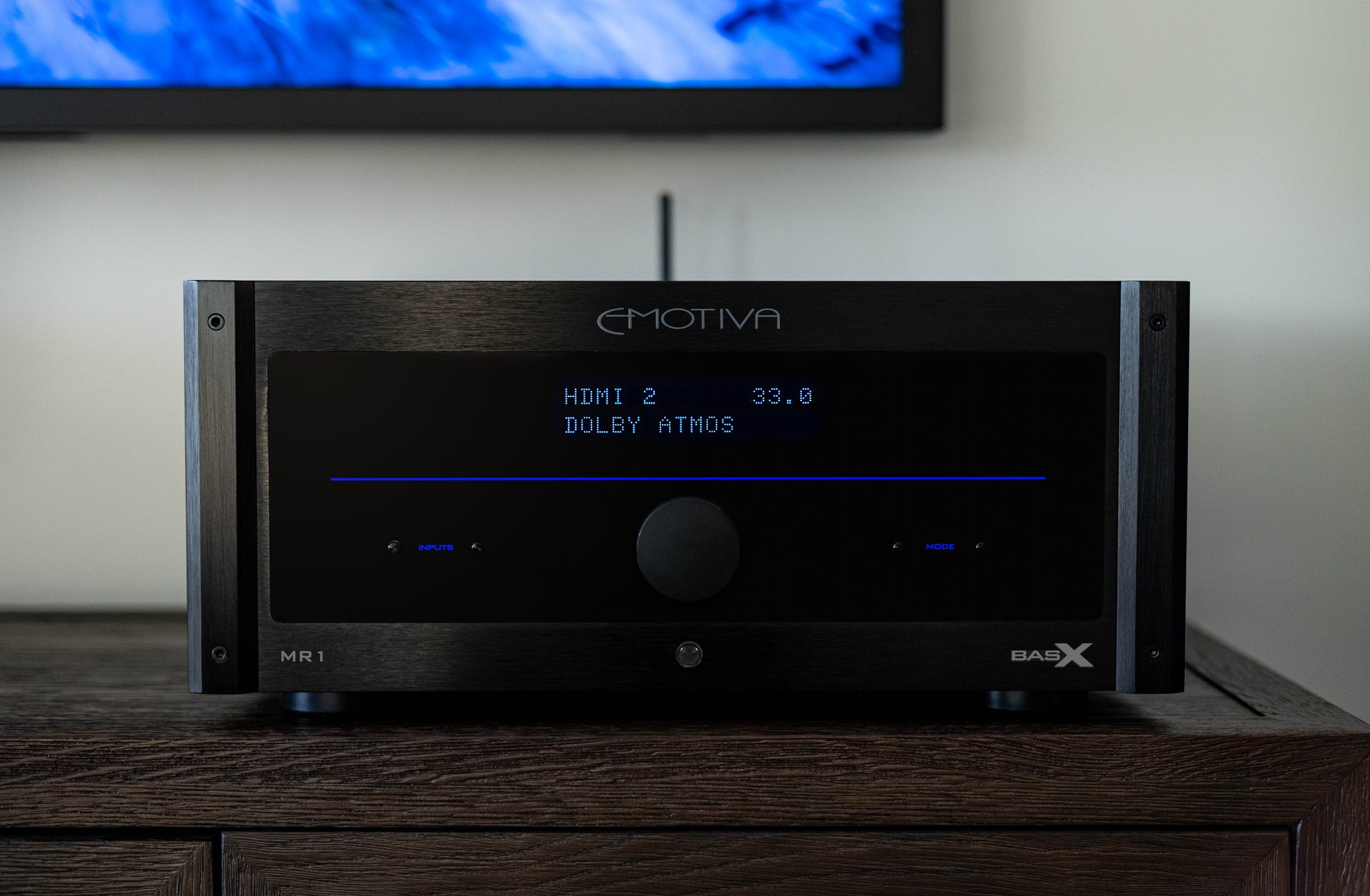

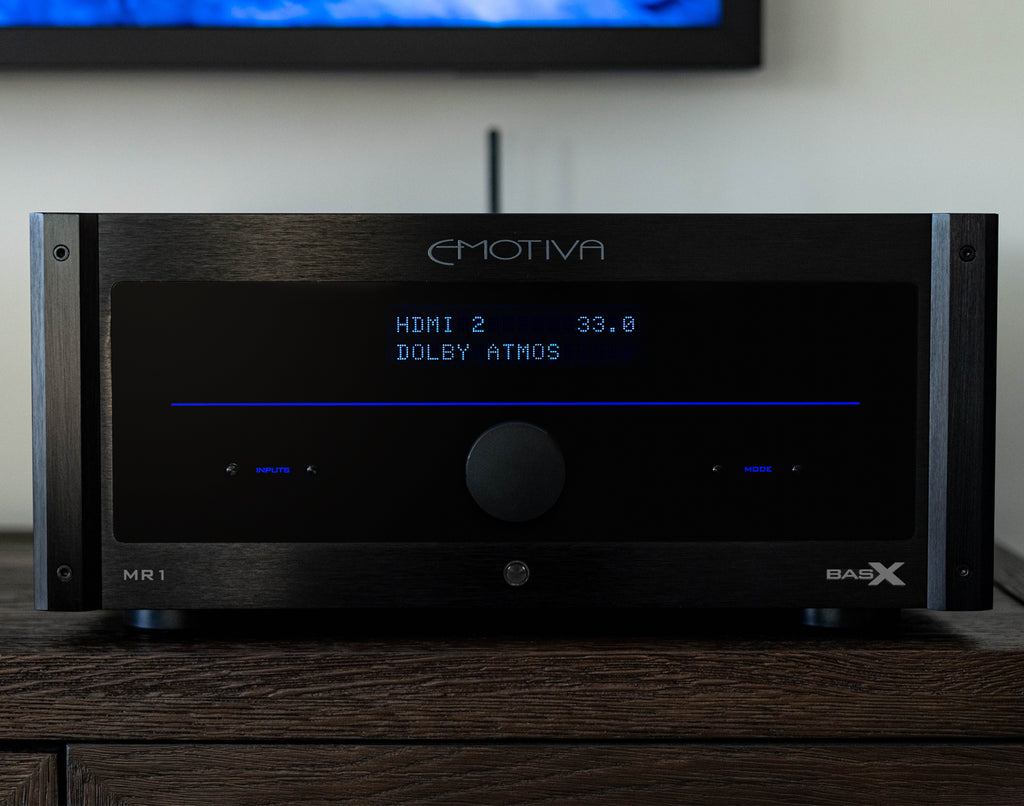

The emotiva basx MR1 home cinema receiver

BASX MR1 11.2 CHANNEL ATMOS® & DTS:X™ CINEMA RECEIVER | $1,999

The BasX MR1 Is a true audiophile component, designed and built
by professionals to deliver the outstanding performance that both
audiophiles and casual listeners can appreciate.

Your speakers will thank you

How long have you been waiting for a receiver that can actually deliver the superb uncompromising performance of separate components? The BasX MR1 cinema receiver combines a high performance 13.2 channel immersive surround sound processor, and an audiophile quality 11 channel power amplifier, in a single chassis. Drive an immersive surround system to its true capabilities with class leading power and headroom, and efficiency.

True Audiophile Sound Quality

The amplifier section of the BasX MR1 combines 11 channels of high current discrete audiophile-grade Class A/B Power amplification.

Highly Optimized Thermal Designs

Utilizing a sophisticated Class H Power Supply driven by a massive, class leading 1,000 VA torodial power transformer, the MR1 delivers unmatched efficiency.

Enhanced eArc Performance

True uncompressed multi-channel surround sound via eARC allows for uncompromised gaming performance and ease of connectivity.

Perfectly Suited for Outstanding Performance

Pure Muscle

This is the 1,000 VA power transformer from the MR1. It powers our exclusive Soft Switchâ„¢ Class H power supply for high efficiency, cool running, reliable operation. The MR1 exhibits complete control over difficult loudspeaker loads that will leave an ordinary receiver gasping for air!

160 Watts into 8 ohms | 290 Watts into 4 ohms
2 Channels Driven

100 Watts into 8 ohms | 130 Watts into 4 ohms
11 Channels Driven

Incredibly detailed surround sound and video performance

The MR1 features 6 HDMI 2.0b video inputs, all of which support 4K UHD HDR video formats including eARC.

Powerful Analog Devices SHARC DSP supports the latest Dolby Atmos, Dolby Surround, DTS, DTS:X, DTS Neural X, and other popular modes.

Flexible Output options for all types of systems

The MR1 features the ability to configure your unit to meet the demands of your room.

Whether you are rocking a dedicated 2.1 system, a traditional 7.1 surround sound setup, or an immersive 7.2.4 or 5.2.4 Atmos or DTS:X system. Processing is available for up to 13.2 channels with an additional 2-channel amplifier.

Advanced EMO-Q® AutomaticRoom Correction

The MR1 includes the latest and most advanced version of our EMO-Q® Automatic Room Correction System. EMO-Q® now displays a visual interface which includes graphs of both the measured and corrected room response. Channels can now also be tested, and the results adjusted, individually in real time over live audio and video.

Day or night, you’re in control

With our new custom designed backlit remote control operation is easy under any lighting condition.

Direct access to all inputs including selecting HDMI outputs. Adjust on the fly with our exclusive Live Trimâ„¢ for all major speaker groups: subwoofer, center, heights, and surrounds.

- KEY SPECIFICATIONS -

Audio Performance - Speaker Outputs (Internal Amps)

Power Output Per Channel; ONE channel driven:
160 watts RMS / channel @ 8 Ohms;
290 watts RMS / channel @ 4 Ohms; < 0.1% THD

Power Output Per Channel; TWO channels driven:
160 watts RMS / channel @ 8 Ohms;
260 watts RMS / channel @ 4 Ohms; < 0.1% THD

Power Output Per Channel; FIVE channels driven:
135 watts RMS / channel @ 8 Ohms;
190 watts RMS / channel @ 4 Ohms; < 0.1% THD

Power Output Per Channel; ELEVEN channels driven:
100 watts RMS / channel @ 8 Ohms;
130 watts RMS / channel @ 4 Ohms; < 0.1% THD

Power Bandwidth (at rated power; 8 Ohm load):
20 Hz to 20 kHz (+ 0 / - 0.15 dB) or better.

Continued Specifications -

Rated Output Voltage:
+6 dBV (2 VRMS)

Frequency Response:
20 Hz to 20 kHz +/- 0.05 dB

Total Harmonic Distortion:
< 0.0025% @ 1 kHz
< 0.05% from 20 Hz to 20 kHz

Signal to Noise Ratio:
> 100 dB @ 1 kHz

Broad Band Frequency Response:
5 Hz to 80 kHz (+ 0 / - 3 dB).

THD + noise:
< 0.005% (A-weighted); at rated power; 1 kHz; 8 Ohms
