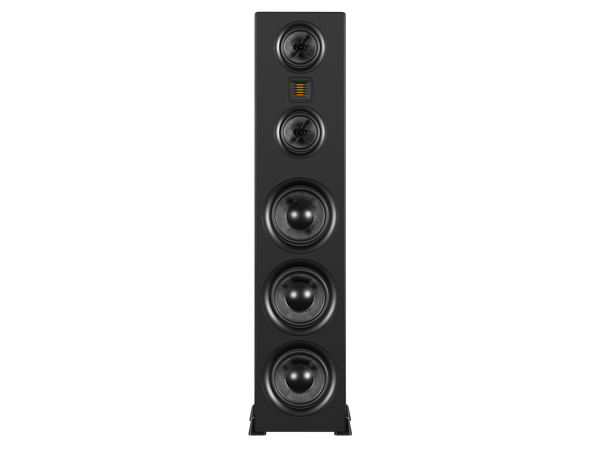

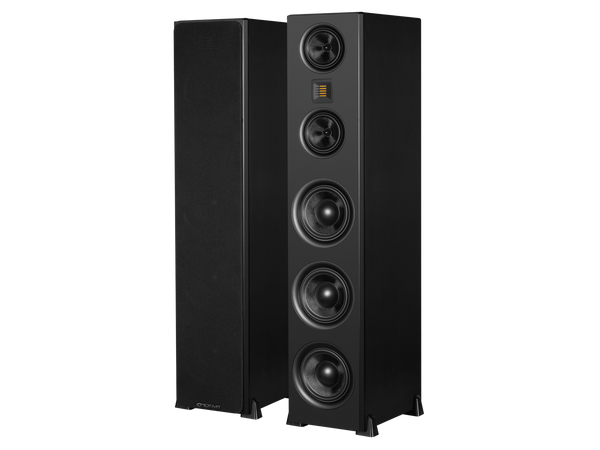

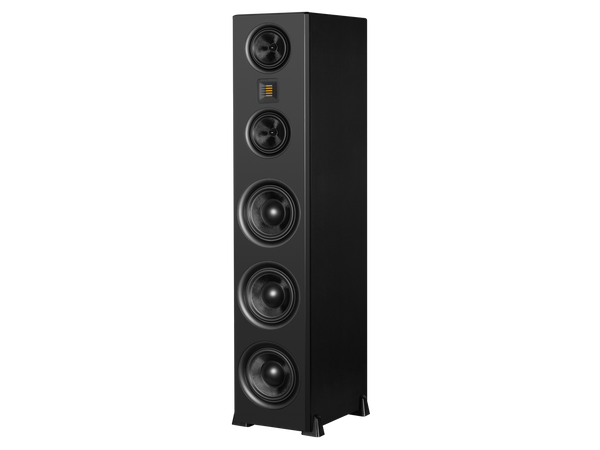

The Airmotiv XT3, a large-scale, three-way floor tower speaker, boasts a 25mm x 32mm, high output folded ribbon tweeter, dual 5.25” fiber midranges, and triple 8” fiber woofers. Ideal for audiophile two-channel systems or as a primary speaker in advanced home theaters, it's the perfect no-holds-barred loudspeaker for larger rooms.

Airmotiv X Loudspeakers: Redefining A Legacy

Introducing the Airmotiv X Loudspeakers - a blend of our best product design and high performance. These speakers are crafted for the ultimate audio goal: to convey the full sound spectrum with minimal distortion to bring out the best in any audio, from classical tunes to rock anthems and even blockbuster movies.

Transforming a basic electrical signal into a rich musical experience, your loudspeakers are crucial in any audio setup. They are the heart of music's emotional impact. Quality speakers don't just play sound; they create an immersive listening adventure.

Whether you're an audiophile with a stereo system or seeking a top-tier home theater experience, Airmotiv X fits perfectly. We've meticulously merged superior technical prowess, exceptional sound clarity, stylish design, and value in Airmotiv X to create our best speakers yet.

New Airmotiv Aesthetics

Our new Airmotiv X loudspeakers feature a new modern design aesthetic. The cabinets on the towers are slender and graceful. The front panels feature a very gentle edge bevel, which is attractive and helps reduce diffraction. The magnetically attached grills, with their rounded corner details, finish the presentation. In addition to the elegant satin lacquer finish on the front panels, we've added smooth trim rings that conceal the driver mounting hardware and help control diffraction while giving the new Airmotiv X loudspeakers a more sophisticated and finished appearance.

Revamped Performance Design

The new Airmotiv X loudspeakers also feature new and improved touches, taking them to a higher level than ever before for Airmotiv. The new Airmotiv X Loudspeakers feature a rotatable folded ribbon tweeter with an improved waveguide allowing users to configure the speaker to fit their specific system layout. The towers are structurally reinforced with internal window bracing and lined with thick Dacron for optimal sound dampening. Every speaker includes an internal-mounted crossover and efficient wire routing, ensuring efficient performance and serviceability. The robust, over-one-inch thick multi-layer front panel enhances rigidity. The driver layout is optimized for superior sound quality, complemented by non-parallel midrange walls to reduce internal reflections, delivering an exceptional acoustic experience.

General

• Configuration: Three-way floor standing tower loudspeaker. Painted HDF baffle, PVC laminated HDF enclosure. 31mm baffle, double window braced with vertical panel stringers, extensively damped with non-parallel midrange sub-enclosure
• Cabinet tuning: Dual rear ports

Driver Compliment

• High frequency driver: 1 ea. - 25mm x 32mm H.O. Airmotiv folded ribbon tweeter with Neo magnet system

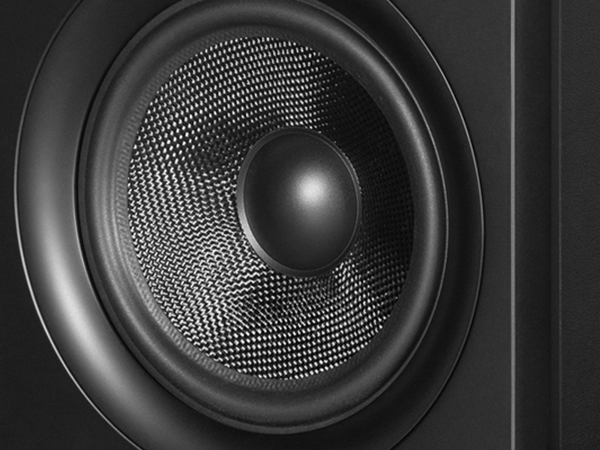

• Midrange driver: 2 ea. 5.25” woven cone diaphragm, aluminum voice coil, milled aluminum phase plug, copper shorting ring, and NBR surround
• Low frequency driver: 3 ea. 8” woven cone diaphragm, aluminum voice coil, long throw motor, progressive spider, copper shorting ring, and NBR surround

Electrical Specifications

• Efficiency: 91 dB (2.83V/1m).
• Power handling: 300W continuous/600W peak
• Recommended amplifier power: 100W or more
• Nominal impedance: 4-ohms nominal, safe with amplifiers rated for 8-ohm loads
• Frequency response: 30 Hz - 27 kHz (+3/-3 dB).
• Crossover Freq: midrange/tweeter) - 3.1 kHz.
• Crossover Freq: woofer/midrange) - 300 Hz.
• Dual 5-way speaker terminals for bi-amping or bi-wiring.

Mechanical

• Dimensions (without feet): 48.7” high x 10.75” wide x 16.75” deep.
• (Add 0.75” height and 1.75” width for feet; add 0.25” for grill)
• 54" x 22" x 16" (boxed)
• Weight: 91 pounds (unboxed)
• 107 pounds (boxed)
• Mounting: Permanently attached outrigger feet with non-mar neoprene pads. Detachable, adjustable spikes included grille: Black cloth over a rigid frame; attaches securely with powerful magnets for easy removal.

DOWNLOADS

Download Product Manual
