The XS12e is built to unlock the missing piece of your system: deep, immersive bass. Without a subwoofer, movie soundtracks lack impact, and music can feel thin. Add the XS12e, and everything changes. Explosions rumble with cinematic intensity. A bass guitar or kick drum hits with weight and texture. You don’t just hear the sound, you literally feel it.

The XS12e is ideal for medium to large rooms. A single subwoofer adds serious low-end to your setup, while running dual XS12e subs smooths out bass across the room for more consistent performance. Whether you’re upgrading a stereo system or building a home theater, this subwoofer makes the difference between good sound and unforgettable sound.

And because it’s an Emotiva product, you can trust it to deliver both performance and reliability. Designed and engineered in Franklin, Tennessee, the XS12e reflects our belief that great audio should be accessible to everyone. And with a 5-year factory warranty, you’ll enjoy that performance with complete peace of mind.

Key Specs at a Glance

• Driver: 12” front-firing long-throw subwoofer
• Amplifier: 300W RMS Class D
• Frequency Response: 28 Hz – 200 Hz (+/- 3 dB)
• Inputs: Balanced XLR + RCA (with LFE option)
• Controls: Volume, Crossover, Phase
• Cabinet: Reinforced MDF, dual rear flared ports
• Dimensions: 15.75” x 15.75” x 15.75”
• Weight: 42 lbs unboxed
• Warranty: 5 Years


Room Size & Pairing: Perfect for medium to large rooms. Use one for strong, impactful bass or run dual XS12e subs for smoother performance across your space.

Frequently Asked Questions

Do I need one subwoofer or two?
One XS12e is plenty for most rooms. For larger spaces, adding a second helps even out bass response for more consistent sound.

Will it work with my receiver or processor?
Yes. With XLR and RCA inputs, it’s compatible with almost any system.

Is it good for both movies and music?
Absolutely. The XS12e adds both cinematic punch and musical depth.

How big is it?
15.75” in height, width, and depth, weighing 42 lbs. Compact enough to fit in most setups.

Does it power on automatically?
Yes. Choose between Always ON or Auto Sense mode.

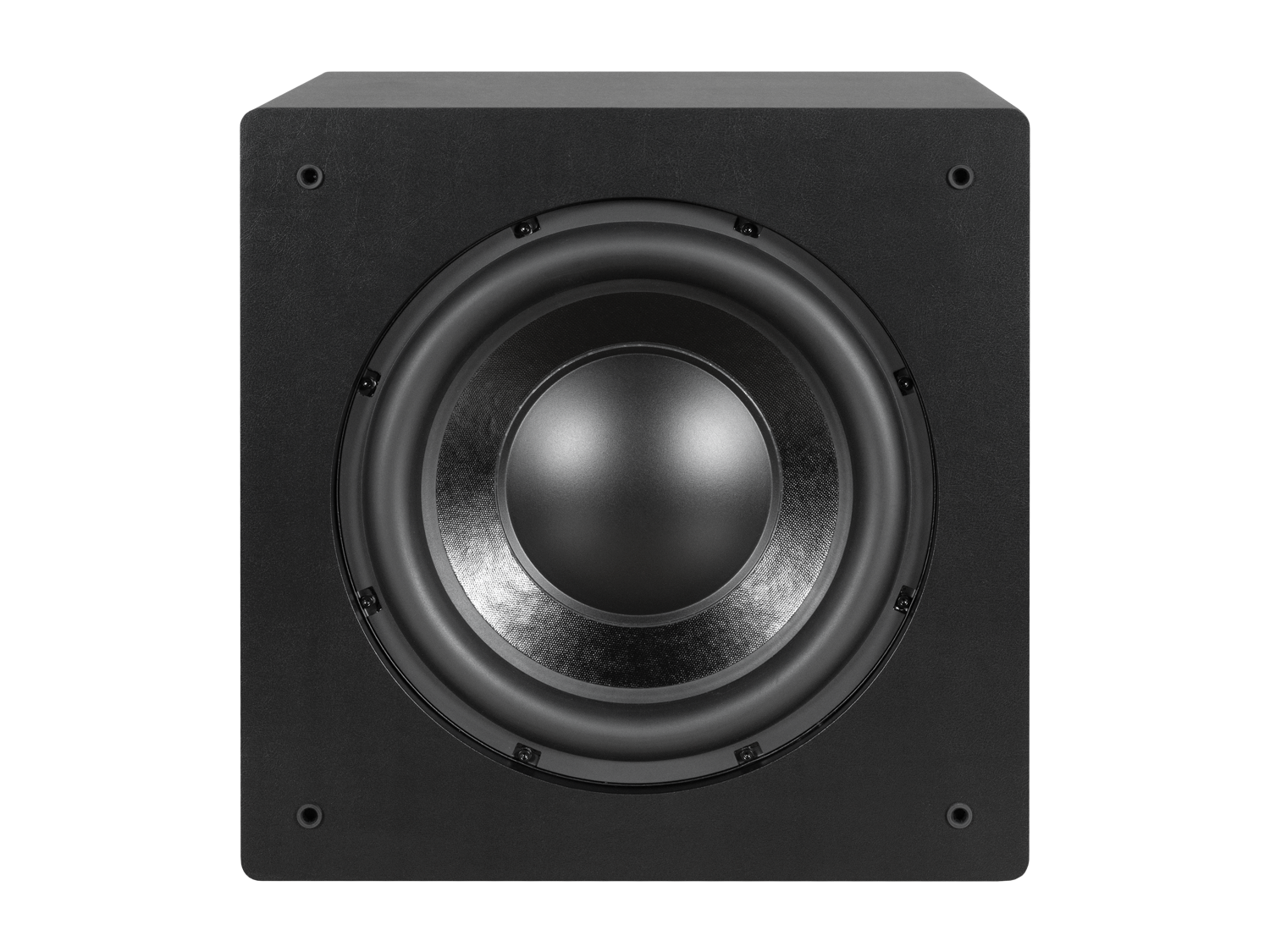

Driver Complement
• 12” forward-firing, heavy-duty long-throw subwoofer
• Vented steel frame, rubber surround, treated paper cone

Electrical Specifications
• High-efficiency 300-watt RMS Class D amplifier (cool running)
• Acoustically transparent limiter
• Frequency Response: 28 Hz – 200 Hz (+/- 3 dB)

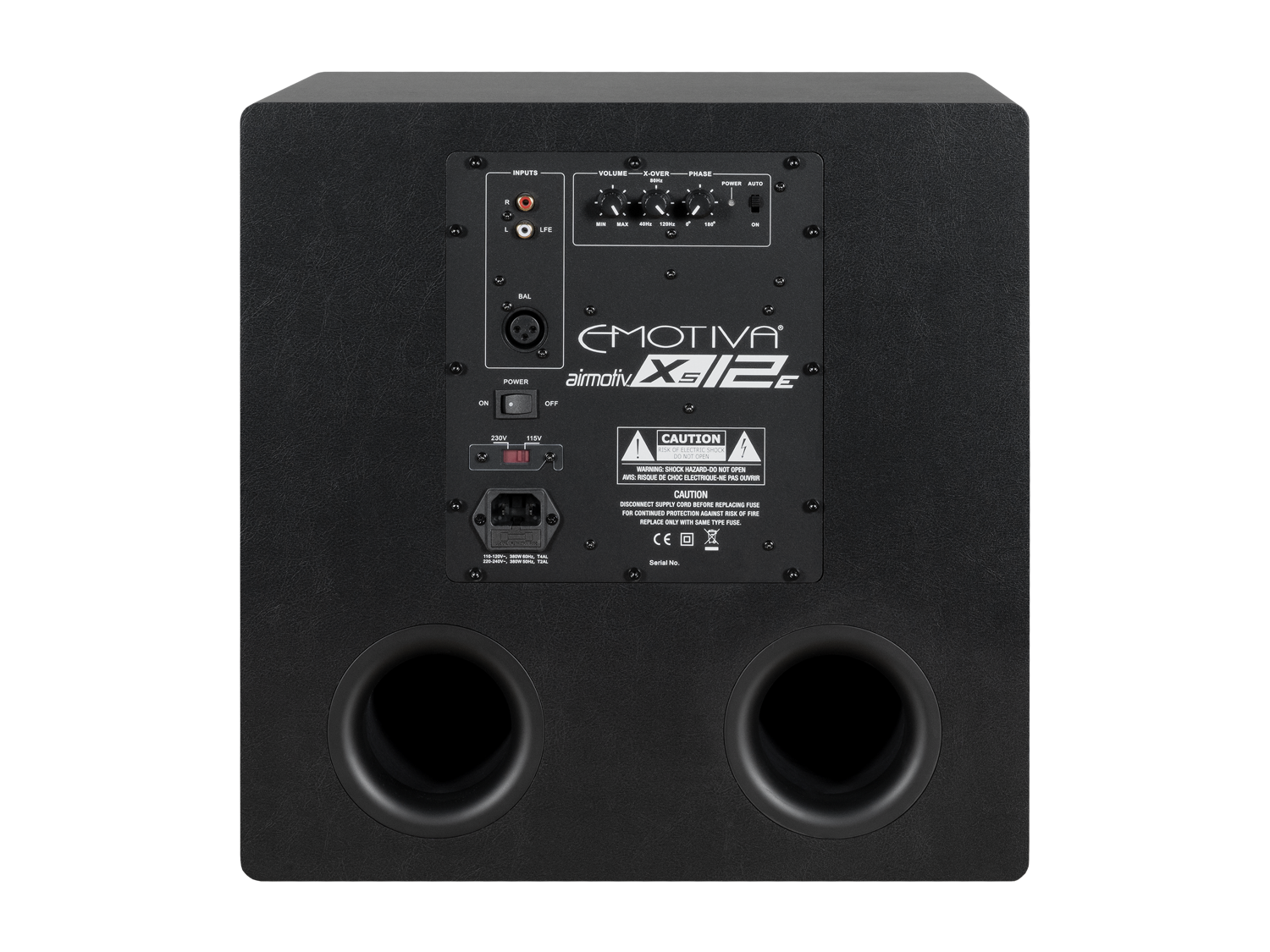

Inputs
• Stereo left and right unbalanced RCA inputs
 – Left RCA also serves as LFE input
• XLR balanced input

Controls
• Volume
• Crossover Frequency (X-Over)
• Phase

Power
• User-selectable line voltage: 115 VAC / 60 Hz (4A Fuse) or 230 VAC / 50 Hz (2A Fuse)
• Power modes: Always ON / Auto sense

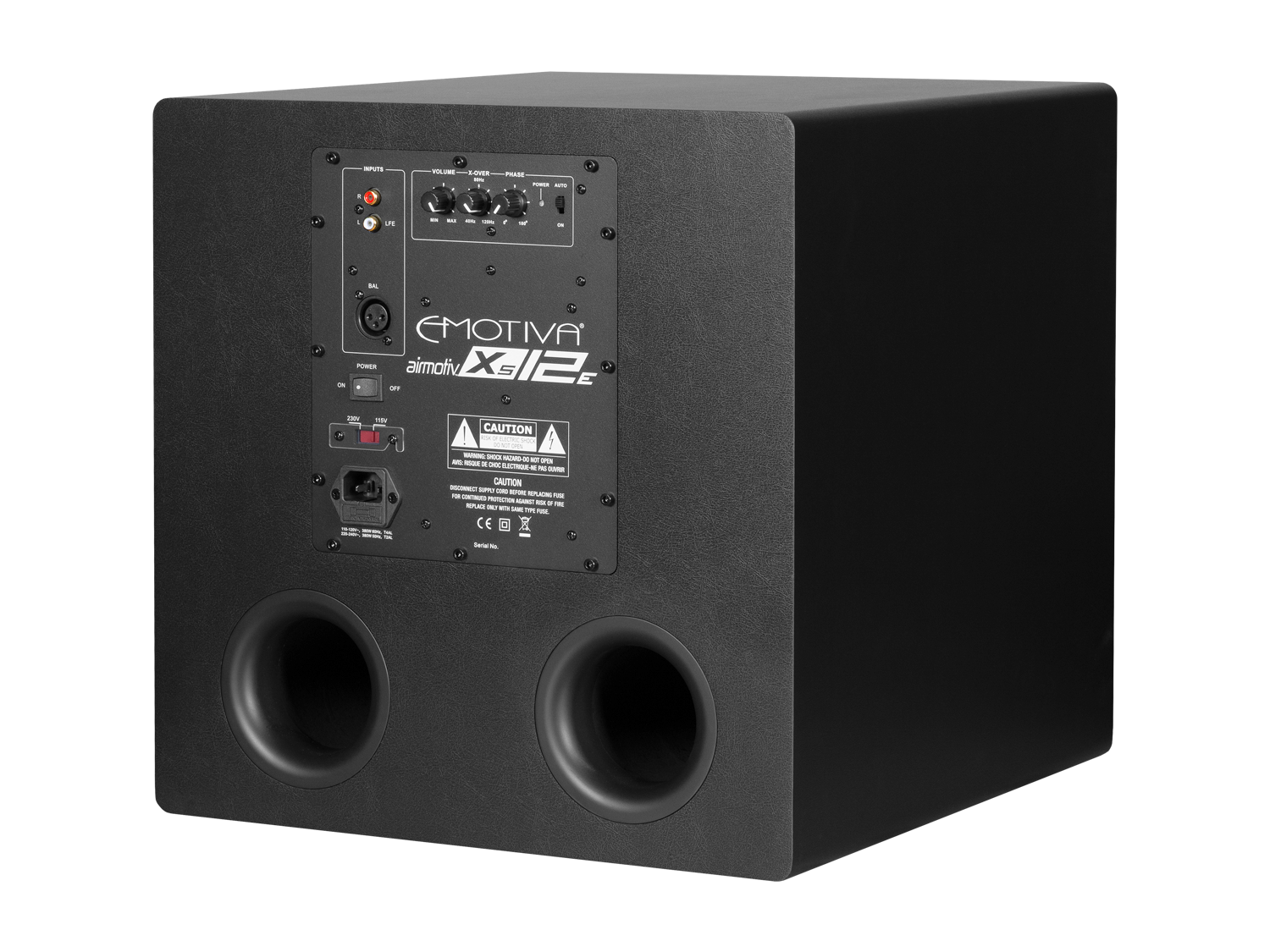

Cabinet
• Reinforced, acoustically inert MDF cabinet
• Dual rear flared tuned ports
• Covered in tough textured vinyl on all sides
• Removable sculpted fabric grill with heavy vibration-resistant MDF frame
• Permanently attached anti-slip rubber feet

Dimensions
• 15-3/4” H x 15-3/4” W x 15-3/4” D (unboxed)
• Add 5/8” for feet; add 3/4” for grill

Weight
• 42 lbs (unboxed)
• 47 lbs (boxed)

Warranty • 5-Year Factory Warranty

User Manual
Airmotiv XS12e User Manual
