BasX A4+ Four-Channel Power Amplifier

Black audio amplifier with Emotiva branding on a white background
BasX A4+ Four-Channel Power Amplifier
New
$799.00
$799.00
Temporarily unavailable
  • Black audio amplifier with Emotiva branding on a white background
  • Back panel of an audio equipment amplifier with control knobs and connectors on a white background
  • Black four channel amplifier with Emotiva branding on a white background

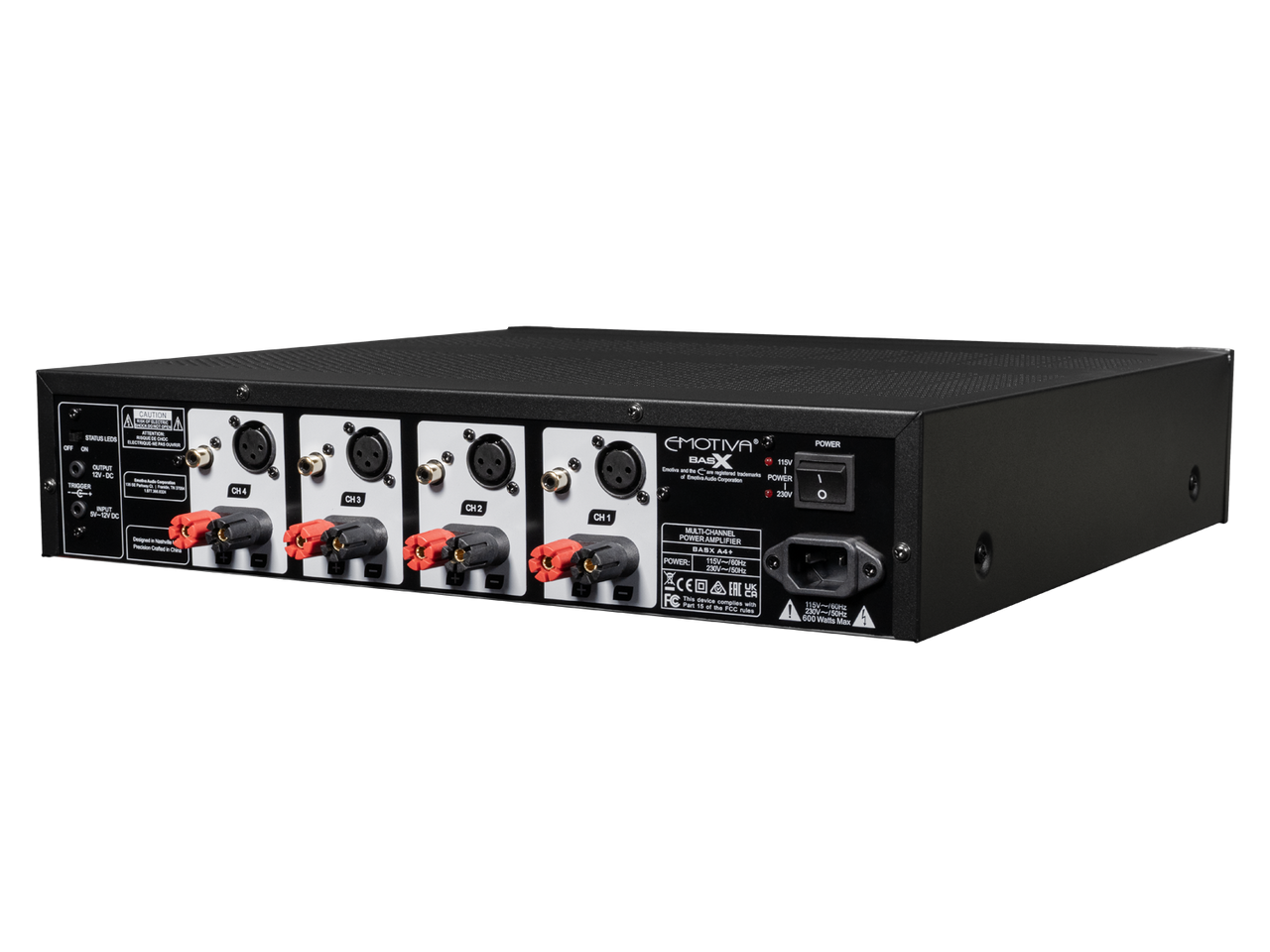

  • Black audio amplifier with multiple inputs on a white background
  • BasX A4+ Four-Channel Power Amplifier
  • Close-up of a metallic surface with a honeycomb pattern
  • EMOTIVA high current ultra low noise toroidal transformer on a dark background
  • Close-up of a textured black surface with blurred red and black background
  • Close-up of EMOTIVA ultra low ESR capacitors on a circuit board with visible branding.
1 of 1

Earn 5000 Reward Points with this purchase

Earn Reward Points with Every Purchase

  • 100 pts = $5
  • Spend on future purchases and upgrades
  • $100 min for points redemption
  • Points expire after 6 months of inactivity
Learn more

  • Free Shipping over $99

    We ship free within the contiguous 48 states in the US, and in select countries in Europe. Additional shipping charges apply for excluded shipping locations. Shipping options and rates are available at checkout.

  • Direct to consumer, no retail markups

  • Designed in the USA

If you are ordering from Emotiva Europe, the product cost includes all taxes and free shipping. It is higher than our USA product price which does not include any taxes. USA customers pay taxes as a separate line item fee added at checkout.

Need Help?

1-615-790-6754
FAQs

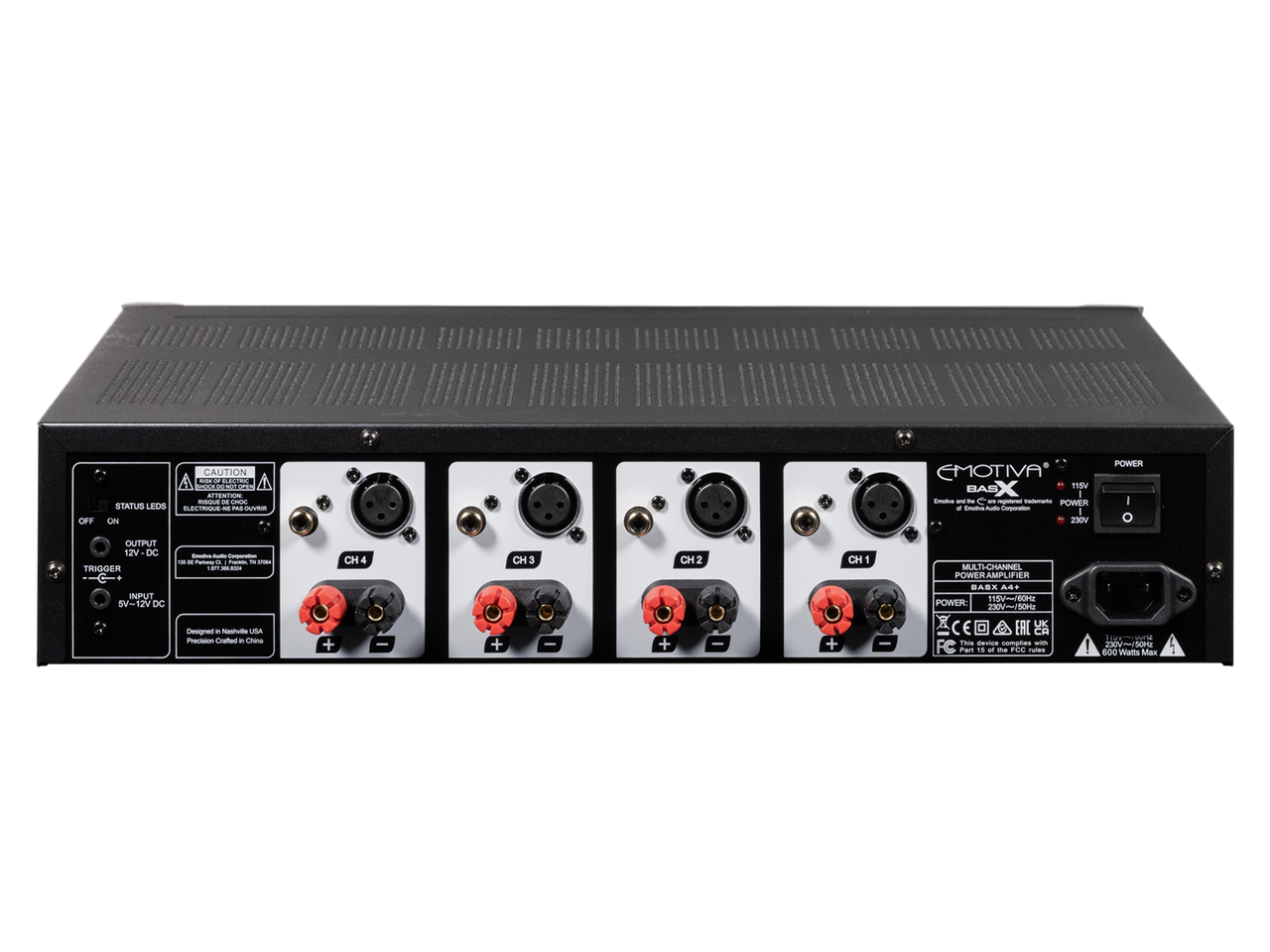

Back panel of an audio equipment amplifier with control knobs and connectors on a white background

Product Overview

Four channels goes farther than you think.

The BasX A4+ Four-Channel Power Amplifier adds dedicated power to four speakers in your system. Perfect for taking the load off your receiver or adding channels to your processor to handle your surround or height channels. The A4+ is rated at 100 watts per channel into 8 ohms (20 Hz to 20 kHz). Effects stay sharp and loud scenes stay smooth.

Inside, a linear power supply with a heavy duty toroidal transformer feeds an audiophile-quality Class A/B output stage. That is the foundation for clean, stable power.

The major BasX Plus upgrade is connectivity. The A4+ adds balanced XLR inputs on every channel, along with standard RCA. Use XLR when your gear supports it for a lower-noise connection. Use RCA when it does not. To set up, connect the A4+ to an AV processor, a preamp, or an AVR with preamp outputs, the jacks labeled “PRE OUT.” Then wire your speakers to the audiophile grade 5-way binding posts. Add 12V trigger in and out for automatic power-up. Built-in protection guards against common fault conditions. The A4+ is rated for 8 ohm speakers and supports 4 ohm operation.

Common uses:
• Add power to four height channels in an Atmos or DTS:X system
• Upgrade an AVR by powering key channels through PRE OUTs for more headroom and control
• Power a second zone or bi-amp a pair of speakers.

Have extra questions after reading this? Connect with us, we’re here to help.

Product Features

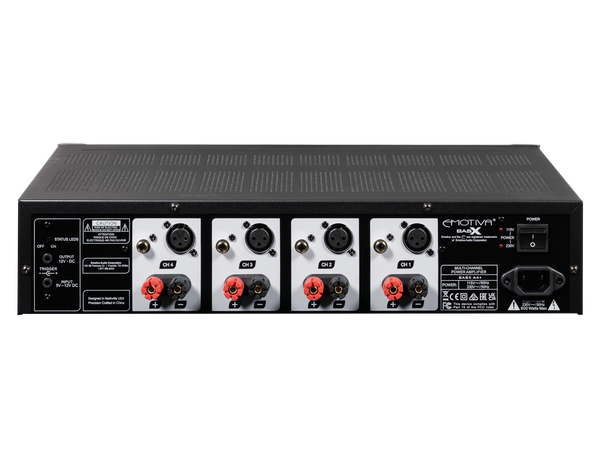

Back panel of an audio equipment amplifier with control knobs and connectors on a white background

Real Power

The BasX A4+ gives you four channels of dedicated Class A/B amplification. It is rated at 100 watts per channel into 8 ohms (20 Hz to 20 kHz). The payoff is cleaner dynamics and better control when content gets demanding.

Close-up of audio equipment with XLR and RCA connectors on a black background

XLR on Every Channel

Every channel includes balanced XLR and unbalanced RCA inputs. Use XLR for a quieter connection when your gear supports it. RCA is there for universal compatibility.

EMOTIVA high current ultra low noise toroidal transformer on a dark background

Toroidal Linear Power Supply

The A4+ uses a linear power supply with a heavy duty toroidal transformer. That stable current delivery helps bass stay tight. It also keeps peaks clean and confident.

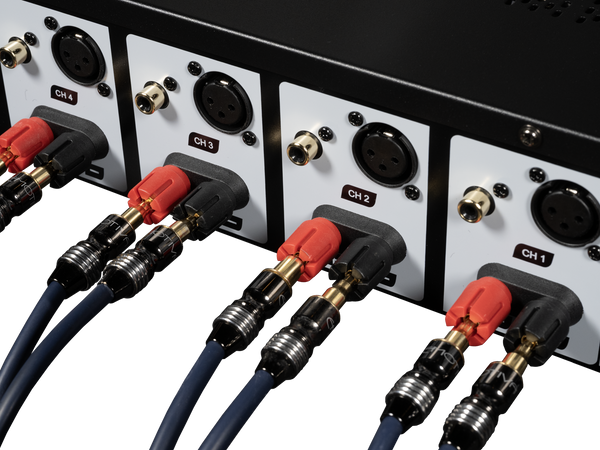

Audio equipment with connectors and cables on a white background

Built for Real Systems

Five-way binding posts accept banana plugs, spades, or bare wire. A 5 to 12 V trigger input (AC or DC) and a 12 V trigger output simplify power control. It slots neatly into a rack-based setup.

4-Ohm Ready and Well Protected

4-Ohm Ready and Well Protected

Rated for 8 ohm loads and designed to support 4 ohm operation, the A4+ works with a wide range of speakers. Protection covers temperature issues, shorts, ground faults, and other common problems. It helps keep things safe without getting in the way.

Specs & Downloads

Complete Your Audio Solution

These products work great with BasX A4+ Four-Channel Power Amplifier
A black Airmotiv XA2 height/surround/ceiling/reflective speaker with visible tweeter and woofer.
$499.00
$499.00
Best Seller
A pair of Airmotiv Vaulta in-ceiling/in-wall loudspeakers with black color and a visible central dome.
In-Ceiling Loudspeaker Pair
$399.00
$399.00
A pair of Airmotiv XT1 black floor standing tower loudspeakers with multiple driver units visible.
Three-Way Floorstanding Tower Loudspeakers
$999.00
$999.00
Pre-order
Front photo of XMC-2+ showing digital display and controls
16 Channel Dolby Atmos & DTS:X Home Theater Processor
$3,999.00
$3,999.00

FAQ

The A4+ is a four-channel power amplifier that adds clean, dedicated power to four speakers in your system. It is commonly used to power Atmos height channels, surround channels, Zone 2 speakers, or to bi-amp a pair of speakers (when your speakers and preamp/processor support bi-amping).

It will work if your receiver has preamp outputs, the jacks labeled “PRE OUT.” You connect those outputs to the A4+ using XLR or RCA cables, and the A4+ powers your speakers. If your receiver does not have PRE OUT jacks, you generally cannot add an external power amp like the A4+ in the normal way.

The big upgrade in the BasX Plus generation is balanced XLR inputs on every channel, in addition to standard RCA. That gives you more connection options, and can help lower noise when used with compatible gear.

Use XLR if your preamp, processor, or AVR has balanced outputs. Balanced connections can help reduce hum and noise pickup, especially with longer cable runs. Use RCA if your gear only has RCA preamp outputs. Both options are built in on every channel.

The A4+ is rated at 100 watts RMS per channel into 8 ohms from 20 Hz to 20 kHz. It also supports 4 ohm operation, and provides higher output into 4 ohms under the published rating conditions.

Yes. The A4+ is rated for 8 ohm speakers and supports 4 ohm operation. As with any amp, make sure your speakers are wired correctly and give the amplifier proper ventilation.

In many systems, yes, as long as your speakers have separate binding posts for bi-amping and your processor or preamp can provide the correct signals to feed two channels per speaker. If you are unsure, our support team can help you confirm the right setup.

Yes. It includes a trigger input (5 to 12 V, AC or DC) and a 12 V trigger output. When connected to a compatible preamp, processor, or AVR, it can power on and off automatically.

The A4+ uses audiophile grade 5-way binding posts. They accept banana plugs, spade lugs, or bare wire.

Like most Class A/B amplifiers, it can generate substantial heat during extended high-power use. Make sure the vents are not blocked and allow adequate space around the amplifier for airflow.

Yes. The A4+ automatically detects 115 VAC or 230 VAC at 50/60 Hz, so setup is simple.

The A4+ includes protection against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions. The protection is designed to help prevent damage while staying out of the way during normal listening.

The A4+ comes with a three-year, transferable warranty.
