Black audio equipment with 'Emotiva' branding on a white background
BasX A8Z Zone Amplifier
New

BasX A8Z Zone Amplifier

  • Black audio equipment with 'Emotiva' branding on a white background
  • Black electronic device with brand logo on a white background

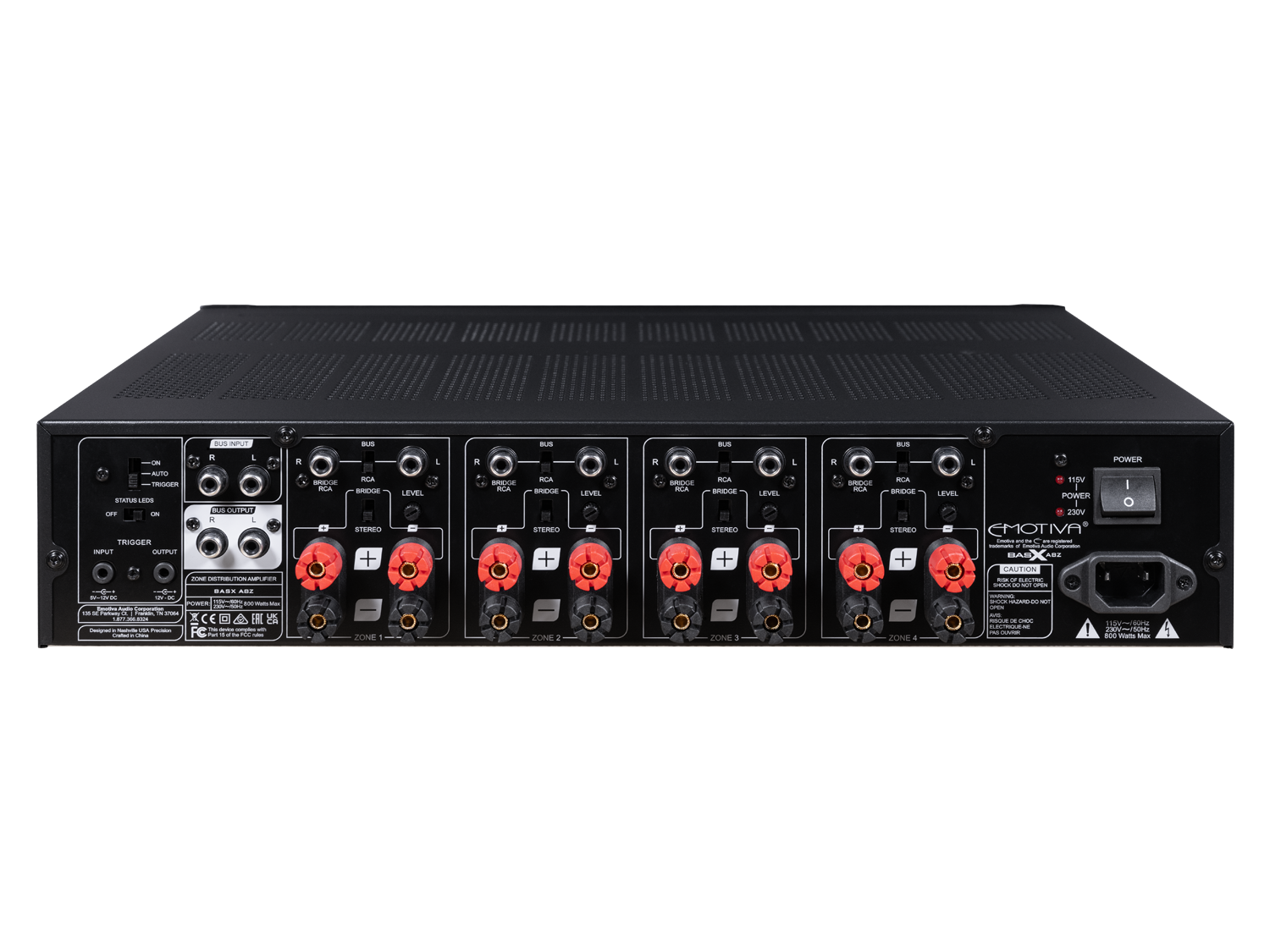

  • Back view of an audio amplifier with control panels and connectors on a white background
  • Black audio amplifier with red control knobs on a white background

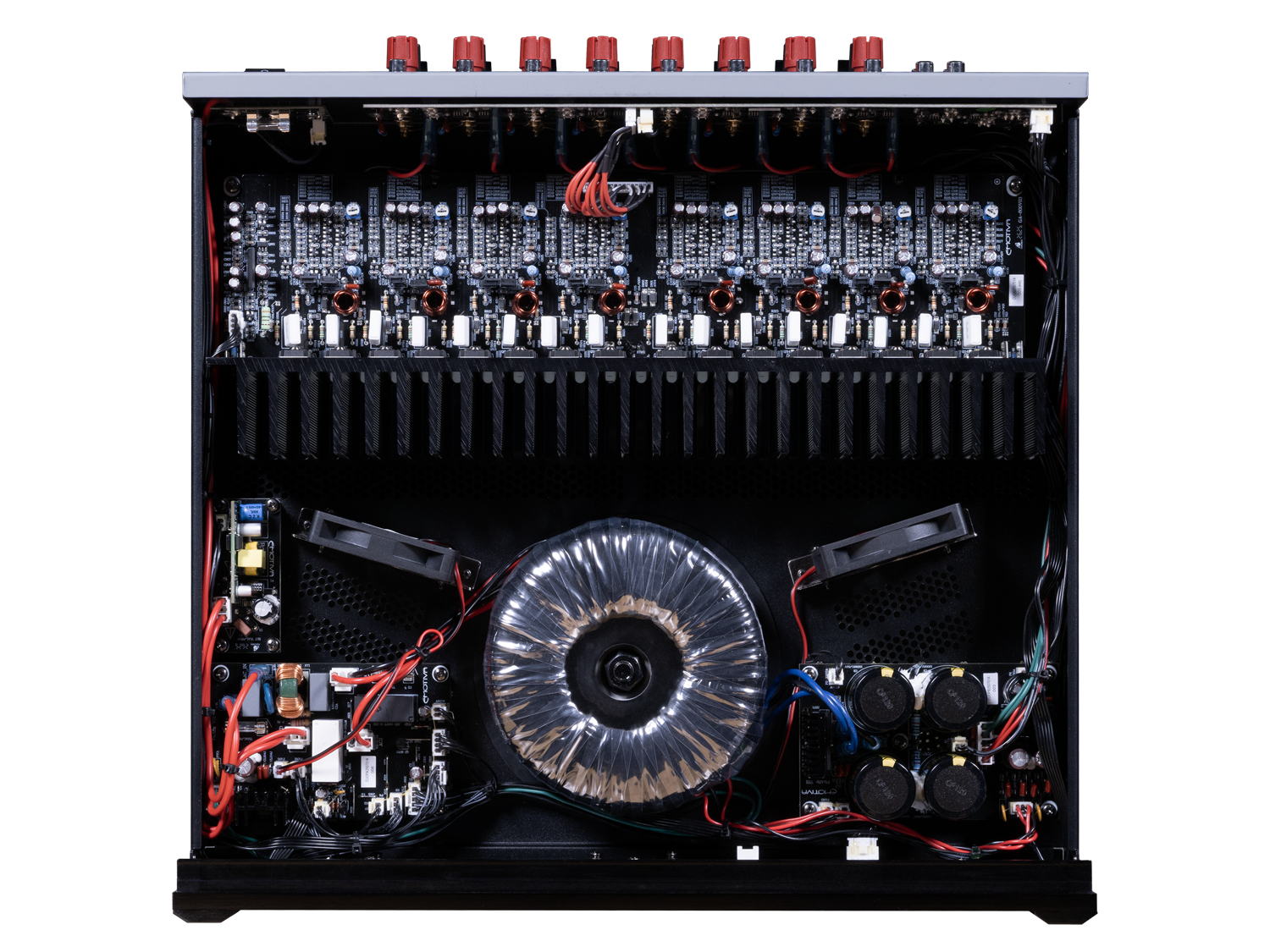

  • Electronic amplifier with visible components on a white background
  • Close-up of electronic circuit board with components and wiring

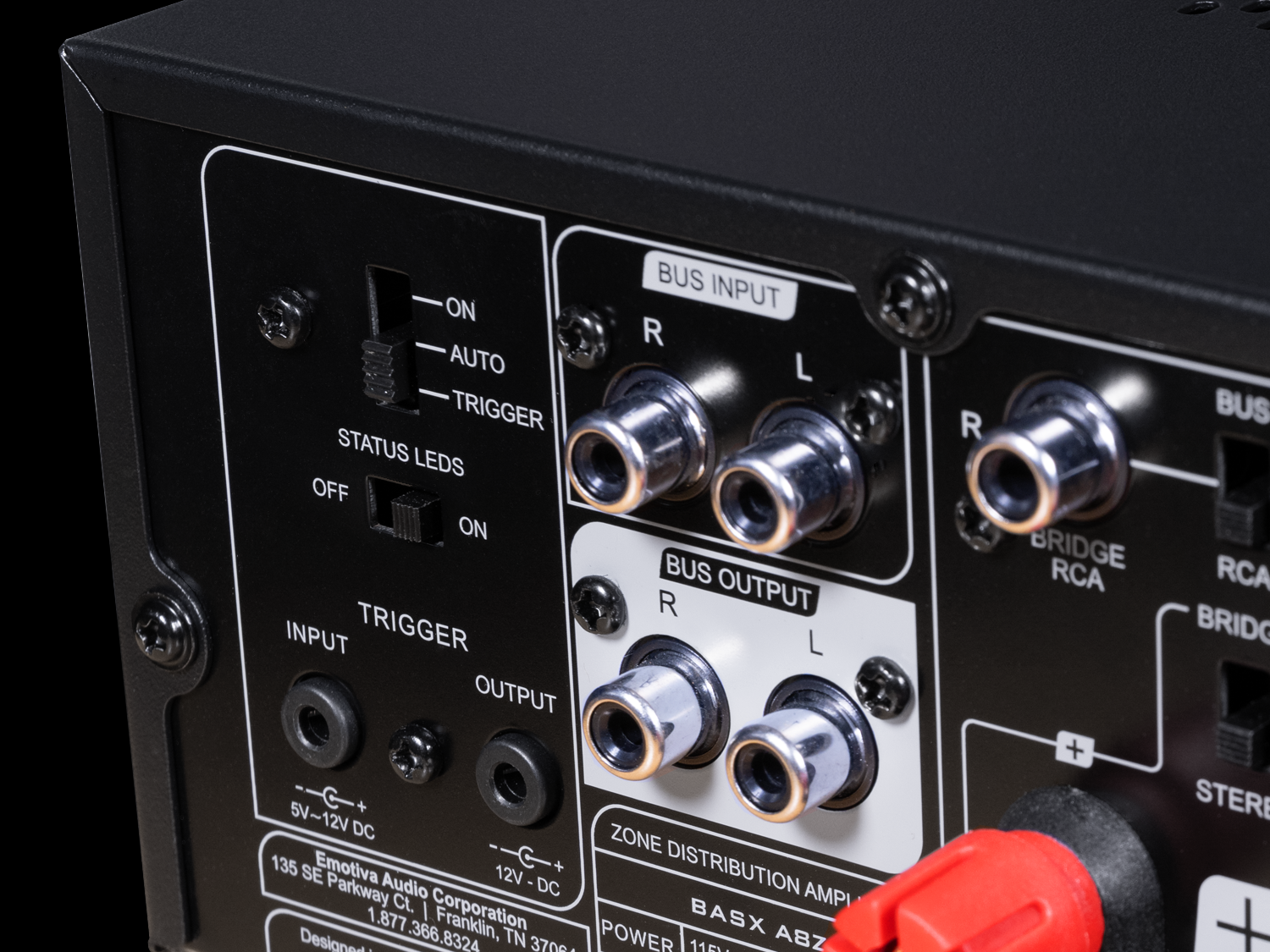

  • Close-up of audio equipment with connectors and labels on a black background
  • Close-up of an audio equipment panel with various connectors and labels on a black background.
  • Close-up of BasX A8z+ amplifier perforated lid
  • Close-up photo of an amplifier heatsink
  • BasX A8Z Zone Amplifier
$999.00
$999.00
Temporarily unavailable

Earn 5000 Reward Points with this purchase

Earn Reward Points with Every Purchase

  • 100 pts = $5
  • Spend on future purchases and upgrades
  • $100 min for points redemption
  • Points expire after 6 months of inactivity
Learn more
B3F9D04C-12D1-42F5-8EB7-69A5B402DDD6@1x
Flexible multi-room design
Clear, dependable sound
Scales with your system
3 Year Warranty

  • Free Shipping over $99

    We ship free within the contiguous 48 states in the US, and in select countries in Europe. Additional shipping charges apply for excluded shipping locations. Shipping options and rates are available at checkout.

  • Direct to consumer, no retail markups

If you are ordering from Emotiva Europe, the product cost includes all taxes and free shipping. It is higher than our USA product price which does not include any taxes. USA customers pay taxes as a separate line item fee added at checkout.

Need Help?

1-615-790-6754
FAQs

One amplifier for multiple rooms

Create four stereo zones from eight channels. Play one source everywhere using the shared input (labeled Bus In/Out on the back), or give a room its own local input (the RCA jacks). The pass-through output lets you add another amplifier later without redoing your system.

Each room at the right volume

Every zone has its own level control. Match the hallway to the kitchen, calm a lively living room, and keep late-night listening comfortable. Set it during setup and it stays consistent.

Power that fits the space

Get 45 watts per channel into eight ohm speakers with all eight channels playing, or 60 watts per channel into four ohm speakers. For larger rooms or outdoor speakers, combine the two channels in a zone to make one higher-power channel with 130 watts into eight ohm. Use bridged operation only with eight ohm speakers.

Simple to live with

Choose auto on so the amp wakes up when it hears music, or use a 12 volt trigger so it powers up with your receiver. Quiet, temperature-controlled fans and built-in protection keep it reliable in an equipment cabinet. The front light can be turned off, the speaker connections use standard binding posts, and the power supply works with 115 volt or 230 volt AC.

BasX A8Z Zone Amplifier

One box. Four zones. Zero drama.

The BasX A8Z is the straightforward way to get reliable, great-sounding audio in every room, without juggling extra boxes.

It gives you four stereo zones from eight channels, so you can play the same source in many rooms or give a room its own source. Each zone has its own level control, which keeps volumes even from room to room. For bigger speakers, you can combine the two channels in a zone to make one higher-power channel that works with eight ohm speakers.

Setup stays easy with auto on when the amp hears music, a 12 volt trigger that lets your receiver turn it on, and a pass-through output for adding another amplifier later. Inside, a heavy-duty power supply and quiet fans keep it reliable in a cabinet, so you can set it once and enjoy music in every room.

Specifications

Circuit Topology

The BasX A8Z is an audiophile-quality Class A/B stereo amplifier, with a highly optimized short-signal-path output stage, and a linear power supply powered by an oversized toroidal transformer.

The A8Z has eight separate amplifier channels - divided into four zones. Each zone can be configured as a pair of stereo channels or as a single high powered bridged channel. The inputs on each zone can be configured to accept their input signal from either a common stereo input bus or a pair of independent inputs.

Audio Power Output

• Output Power (eight channels; ALL channels driven):

45 watts RMS/channel; from 20 Hz - 20 kHz; THD <0.05%; into 8 Ohms

60 watts RMS/channel; from 20 Hz - 20 kHz; THD <0.05%; into 4 Ohms

• Output Power (eight channels; TWO channels driven):

60 watts RMS/channel; from 20 Hz - 20 kHz; THD <0.05%; into 8 Ohms

95 watts RMS/channel; from 20 Hz - 20 kHz; THD <0.05%; into 4 Ohms

• Output Power (BRIDGED; four channels; ALL channels driven):
130 watts RMS/channel; from 20 Hz - 20 kHz; THD <0.05%; into 8 Ohms

Output Power (BRIDGED; four channels; TWO channels driven):
175 watts RMS/channel; from 20 Hz - 20 kHz; THD <0.05%; into 8 Ohms

• Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.08 dB)

• Broad Band Frequency Response : 5 Hz to 80 kHz +0 / -1 dB

• THD + noise: < 0.05%; 20 Hz - 20 Khz; at rated power

• Signal to Noise Ratio:

> 113 dB; ref FTC rated power (A-weighted)

> 96 dB; ref FTC rated power (A-weighted)

Damping Factor (8 Ohm load): > 500

Gain (levels set to maximum): 29 dB

Minimum Recommended Load Impedance

4 Ohms continuous; individual channels (x 8)

8 Ohms continuous; bridged channels (x 4)

Speaker Output Connections

Audiophile grade 5-way binding posts.

Power Supply

Linear power supply with heavy duty toroidal transformer.

Power Requirements

115 VAC or 230 VAC at 50 Hz or 60 Hz (automatically detected).

Protection

The A8Z is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.

Input Connections

Unbalanced (RCA)

• Trigger

Trigger Input: 5 - 12 V (AC or DC).

Trigger Output: 12 VDC nominal.

Dimensions:

17” wide x 4” high x 16” deep

• Weight

Boxed: 36 lbs

Unboxed: 25 lbs

User Manual:

BasX A8Z User Manual
