XPA C Compact Chassis Power Amplifier
Product Key:
• First number is the total amount of channels
• Second number is the amount of High Power Modules
• Third number is amount of Stereo Modules
Ex: seven-3-2-c is seven total channels. 3 High Powered Modules and 2 Stereo Modules.
If you are ordering from Emotiva Europe, the product cost includes all taxes and free shipping. It is higher than our USA product price which does not include any taxes. USA customers pay taxes as a separate line item fee added at checkout.
Product Overview
Product Features
Compact 15-Inch-Deep Chassis
We've brought the XPA Gen3 modular platform into a 15-inch-deep chassis that plays nicely with modern AV furniture. It’s a practical upgrade that does not demand a dedicated equipment rack.
Best-Selling XPA Gen3 Modular Platform

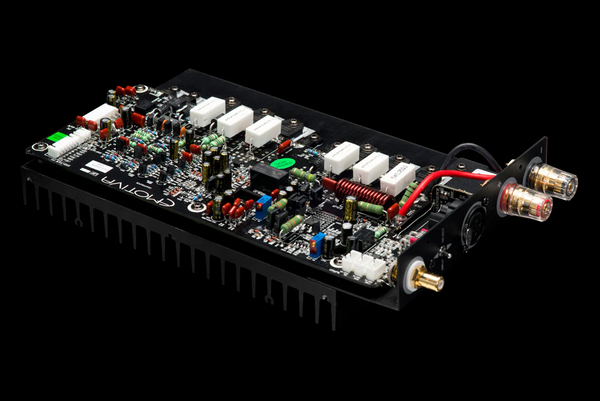

Five module bays let you configure the channels you need, using a mix of mono and stereo modules. Start small, then expand or reconfigure later, keeping the same chassis.
Flexible Connections
Each channel supports balanced XLR or unbalanced RCA, so it pairs easily with an AV processor, preamp, or receiver with pre-outs.
Clean, Controlled Class A/B Sound
Fully discrete Class A/B output stages deliver smooth detail and strong speaker control when music gets dynamic. Translation: clearer dialogue, tighter bass, and less harshness when you turn it up.
Smart Power and Built-In Protection
A high-current switch-mode power supply with Soft-Switch Optimized Class H operation helps the amp stay composed on peaks while running efficiently. Microprocessor-controlled protection helps safeguard against common faults, and it is backed by a 5-year warranty.
Specs & Downloads
• First number is the total amount of channels
• Second number is the amount of High Power Modules
• Third number is amount of Stereo Modules
Ex: seven-3-2-c is seven total channels. 3 High Powered Modules and 2 Stereo Modules.
The XPA C Gen3 is a fully modular audio power amplifier with a high-efficiency switch mode power supply (SMPS), independent, fully discrete,
dual differential, high current, short signal path Class A/B amplifier modules, Optimized Class H™ power supply topology, and microprocessor-controlled fault
protection.
The XPA C Gen3 is powered by a high efficiency, audiophile grade, Switch Mode Power Supply (SMPS).
Power Output:
300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven.
550 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven.
300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven.
490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.
Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB).
Broad Band Frequency Response: 5 Hz to 80 kHz +0/-2 dB.
THD + noise: < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms.
Signal to Noise Ratio (8 Ohm load):
> 117 dB; ref FTC rated power; unbalanced input (A-weighted).
> 91 dB; ref 1 watt; unbalanced input (A-weighted).
Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads)
Damping Factor (8 Ohm load): > 500
Input Sensitivity (for rated power; 8 Ohm load): 1.71 V
Gain: 29 dB
Input Impedance:
33 kOhms (balanced)
23.5 kOhms (unbalanced)
Power Output:
65 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven
100 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven
65 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven
100 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven
Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load): 20 Hz
to 20 kHz (+ / – 0.1 dB)
Broad Band Frequency Response: 50 Hz to 80 kHz +0/-1.5 dB
THD + noise: < 0.02%; at 60 watts RMS; 1 kHz; 8 Ohms
Signal to Noise Ratio (8 Ohm load):
> 105 dB; ref FTC rated power; unbalanced input (A-weighted)
> 85 dB; ref 1 watt; unbalanced input (A-weighted)
Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads)
Damping Factor (8 Ohm load): > 500
Input Sensitivity (for rated power; 8 Ohm load): 0.8 V (800 mV)
Gain: 29 dB
33 kOhms (balanced)
23.5 kOhms (unbalanced)
Connections
Input Connections (High-Powered Single Channel Modules):
Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable.
Input Connections (Stereo Modules):
2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable
Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts
Trigger:
Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required
Trigger Output: 12 VDC; can drive any load up to 120 mA
Power Requirements:
Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected)

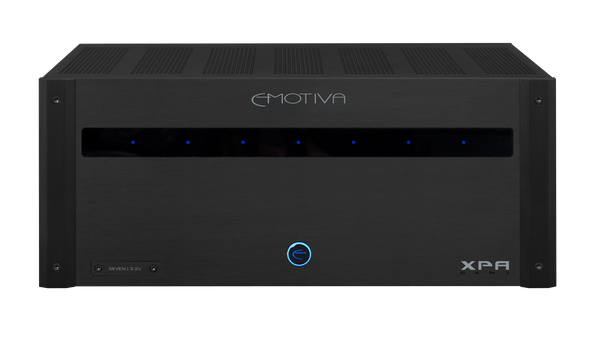

Front Panel Controls and Indicators
Standby: push button (halo ring changes color to indicate Standby or On)
Status LEDs: one per channel; blue
Status LEDs change to red to indicate a fault condition
Rear Panel Controls
AC Power switch: rocker switch (switches AC main power)
Status LEDs switch: disables front panel Status LEDs and dims Standby button halo
Input selector switches (one per channel):
Metal toggle switches; select between balanced and unbalanced inputs
Circuit Breaker: press button to reset circuit breaker
The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.
Dimensions (dimensions are the same for all
configurations)
17” wide x 8” high x 15” deep (unboxed; including feet)
17” wide x 7” high x 15” deep (unboxed; without feet)
24-1/2” wide x 12” high x 20-3/4” deep (boxed)
Weight (weight will depend on the number of modules configured)
- with 2 modules: 35.5 pounds (unboxed)
- with 3 modules: 39 pounds (unboxed)
- with 4 modules: 42.5 pounds (unboxed)
- with 5 modules: 46 pounds (unboxed)
* For boxed weight, add 5 lbs to the above weights
