RMC-1+ 16 Channel Dolby Atmos & DTS:X Cinema Processor
The Emotiva RMC-1+ is a state-of-the-art surround sound processor c...
The Emotiva RMC-1+ is a state-of-the-art surround sound processor combining 8K HDMI 2.1 video switching and audiophile-grade sound. With eight HDMI inputs, two outputs, and support for technologies like Dolby Vision, Variable Refresh Rate, and immersive audio formats like Dolby Atmos, it ensures cutting-edge performance. Dirac Live Room Correction optimizes sound across sixteen channels, while Reference Stereo mode offers unmatched fidelity for two-channel playback. Intuitive controls, a web interface, and upgradeable expansion ports add versatility, making the RMC-1+ a benchmark for modern home theater systems, perfect for 8K video, gaming, and high-fidelity music.
If you are ordering from Emotiva Europe, the product cost includes all taxes and free shipping. It is higher than our USA product price which does not include any taxes. USA customers pay taxes as a separate line item fee added at checkout.
Need Help?
Product Overview
Product Features

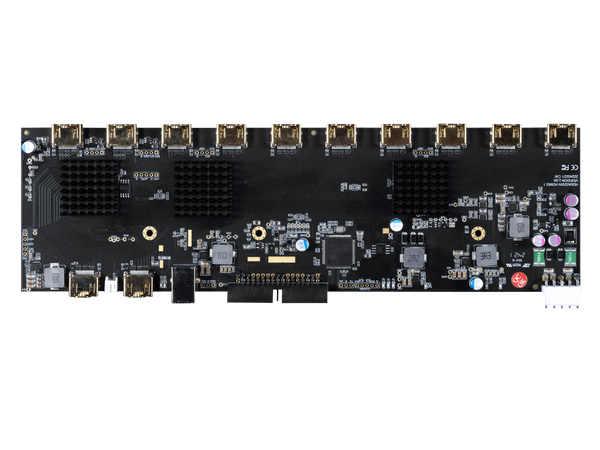

Support for HDMI 2.1 and 8K Video
The RMC-1+ has eight HDMI video inputs and two HDMI video outputs, all of which support HDMI 2.1, including Fixed Rate Link for 8k video, Fast Port Switching for lightning-fast switching with all 4k and most 8k video sources, and Variable Refresh Rate for a great gaming experience. The RMC-1+ also supports HDR color modes, including Dolby Vision, both HDR10 and HDR10+, and HLG HDR color.
Full Support for Surround Sound and Immersive Audio Formats
The RMC-1+ supports classic surround sound formats like Dolby TrueHD and DTS-HD Master Audio, as well as the latest immersive Dolby Atmos and DTS:X Pro content, and includes the latest Dolby Surround and DTS Neural:X upmixers. The RMC-1+ has built-in support for up to sixteen discrete channels – so you can take full advantage of the latest high-channel-count immersive audio content.
True Audiophile Sound Quality
The RMC-1+ offers true audiophile sound quality comparable to high-end audiophile separates. The RMC-1+ offers a full range of audio decoding and processing options, all the way from sophisticated manual and automatic room correction, to our purist Reference Stereo mode, which Is perfect for listening to your high quality two channel analog sources.

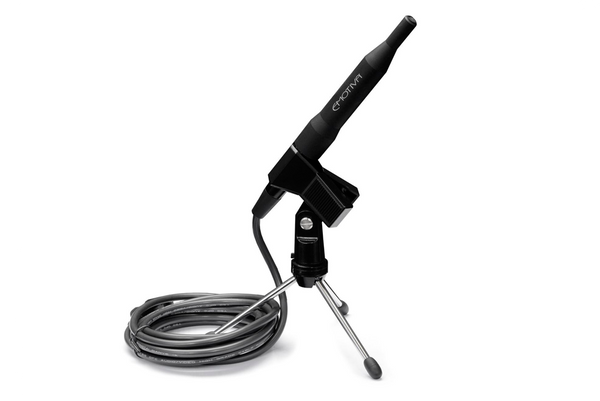

Dirac Live Room Correction
The RMC-1+ includes a license to the full version of Dirac Live Room Correction, which provides advanced automatic room correction, to enable your room and speakers to sound their best. The version of Dirac Live that comes standard with the RMC-1+ supports calibration of all sixteen channels over the full frequency range.
Flexible Control and Display Options
The RMC-1+ offers a wide range of control options, including the sophisticated front panel encoder knob, our iconic solid metal remote control, a Web-based remote control interface, and a network-based API which can be integrated with whole-home control systems. Stay informed about what’s going on with your RMC-1+ at all times via the dual high-visibility front panel OLED displays, a configurable on-screen display, and the Web-based remote control interface.

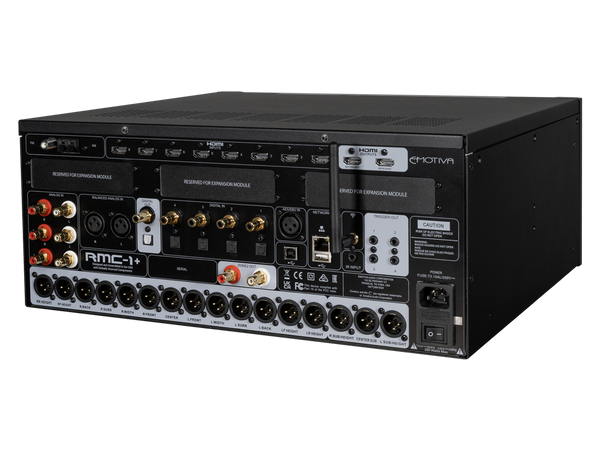

Expansion Capabilities
In addition to all its standard features, the RMC-1+ features three rear-panel ports, which can accommodate additional expansion modules. The RMC-1 will ship with our Phono Preamp and Balanced Input expansion modules pre-installed and one expansion port empty to allow for future expansion.
Specs & Downloads
Digital Decoding Modes
Dolby Atmos®
Dolby TrueHD
Dolby Digital Plus
Dolby Digital 5.1
DTS:X™
DTS:X Pro™
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 5.1
PCM-Multi 5.1
PCM-Multi 7.1
Digital Post-Processing Modes
Dolby Surround Upmixer (DSU)
Dolby Atmos Height Virtualization
DTS Neural:X upmixer
DTS Virtual:X
IMAX Enhanced (Coming Soon)
Audio Operating Modes
Reference Stereo (purist stereo mode)
Direct Mode (minimal processing; with bass management)
Stereo Mode
All Stereo Mode
Display
OLED (dual blue; high resolution 256 x 60 pixel graphical;
variable brightness)

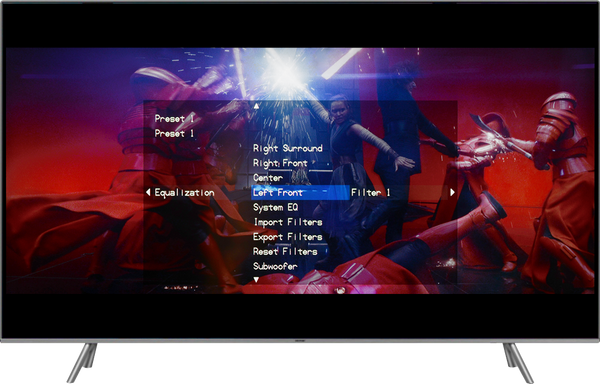

OSD
Color OSD is displayed over live video, including 4k, 8k,and 3D sources
(variable transparency; multiple operating modes provide different levels of information)

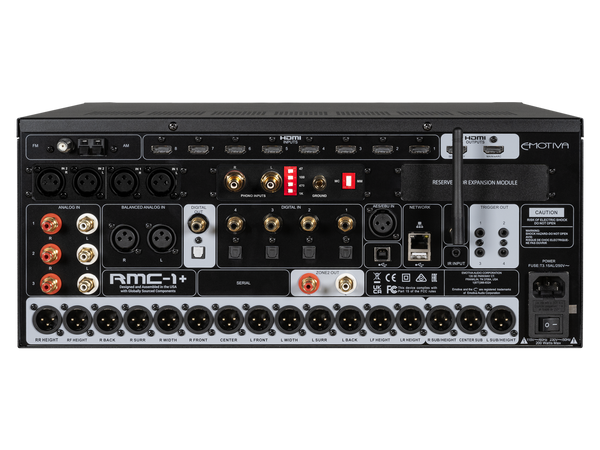

Analog Inputs
1 pair (stereo) – Reference quality analog audio (balanced;
XLR)
3 pair (stereo) – Reference quality analog audio
(unbalanced; RCA)
Digital Inputs
8 – HDMI 2.1 with Fast Port Switching (FPS), Variable Refresh Rate (VRR), and Fixed Rate Link (FRL)
4 – Toslink optical S/PDIF digital audio
4 – Coax (RCA) electrical S/PDIF digital audio
1 – AES/EBU (XLR) digital audio
2 – USB Type A digital data (for firmware updates and future
enhancements)
1 – USB Type B digital audio (“USB DAC” input)
1 – Ethernet port (RJ-45)
1 – Wifi antenna
Other Inputs
Internal high-performance AM/FM tuner (antenna connections: FM - “F” connector; AM - push terminals)
Wired IR remote control input
Analog Outputs
16 channels – Reference quality main analog audio (balanced
XLR)
1 pair (stereo) – analog line level Zone 2 output
(unbalanced)
1 – high-quality headphone output (1/8” stereo connector)
Digital Outputs
2 – HDMI 2.1
1 – Toslink optical S/PDIF digital audio
1 – Coax (RCA) electrical S/PDIF digital audio
4 – Independently programmable Trigger Outputs
Expansion Ports (for future expansion modules)
RMC-1+ (rear panel) – 3
- RMC-1+ – Unboxed: 17” Wide x 15.5” Deep x 7” High (not counting feet)
- RMC-1+ – Unboxed: 17” Wide x 15.5” Deep x 7.525” High (with feet)
- RMC-1+ - Boxed: 22" Wide x 19" Deep x 10" High
- 30 lbs.
